Description
Product Codes
| Code | Description | Amps at Working Load (A) | Circuit Breaker | Construction | Line Speed at W.L | Max Line Speed | Maximum Pull | Motor size | Net Weight | Power Supply | Working load (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

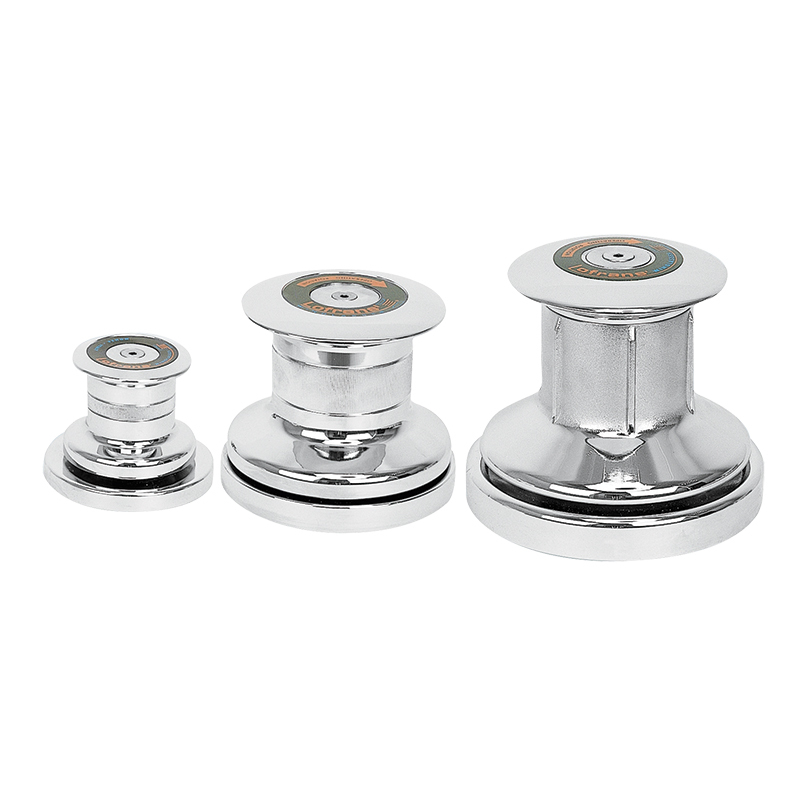

| 220006 | CAPSTAN T700 CRO STD 700W/12V | 110 | 187331 | Chromed bronze | 20 m/min | 30 m/min | 850 kg | 700 W | 15 kg | 12 V | 115 |
| 411129 | CAPSTAN T700 ALU STD 700W/12V | 110 | 187331 | Aluminium | 20 m/min | 30 m/min | 850 kg | 700 W | 15 kg | 12 V | 115 |
| 418159 | CAPSTAN T700 CRO STD 700W/24V | 50 | 187332 | Chromed bronze | 23 m/min | 30 m/min | 900 kg | 700 W | 15 kg | 24 V | 115 |
| 600779 | CAPSTAN T700 ALU STD 700W/24V | 50 | 187332 | Aluminium | 23 m/min | 30 m/min | 900 kg | 700 W | 15 kg | 24 V | 115 |
