Description
Suitability for bliage under ship and deck cleaning and fighting the fire
– Easiness to operate the pump installing the switch inside of the ship and wheelhouse
– uses the electronic clutch pump at the voltage of from 12 to 24.
– Simplicity to install and operate because of the unnecessariness of depleting the air and filling out the water.
– Easiness to change the parts. Impeller can easily be changed by the unting the front cover.
– Possibility of lashing and backlashing
– Can be used as multi-functional pump which can carry the high viscosity of fluid, solid body, and sludge/slurry
– Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.

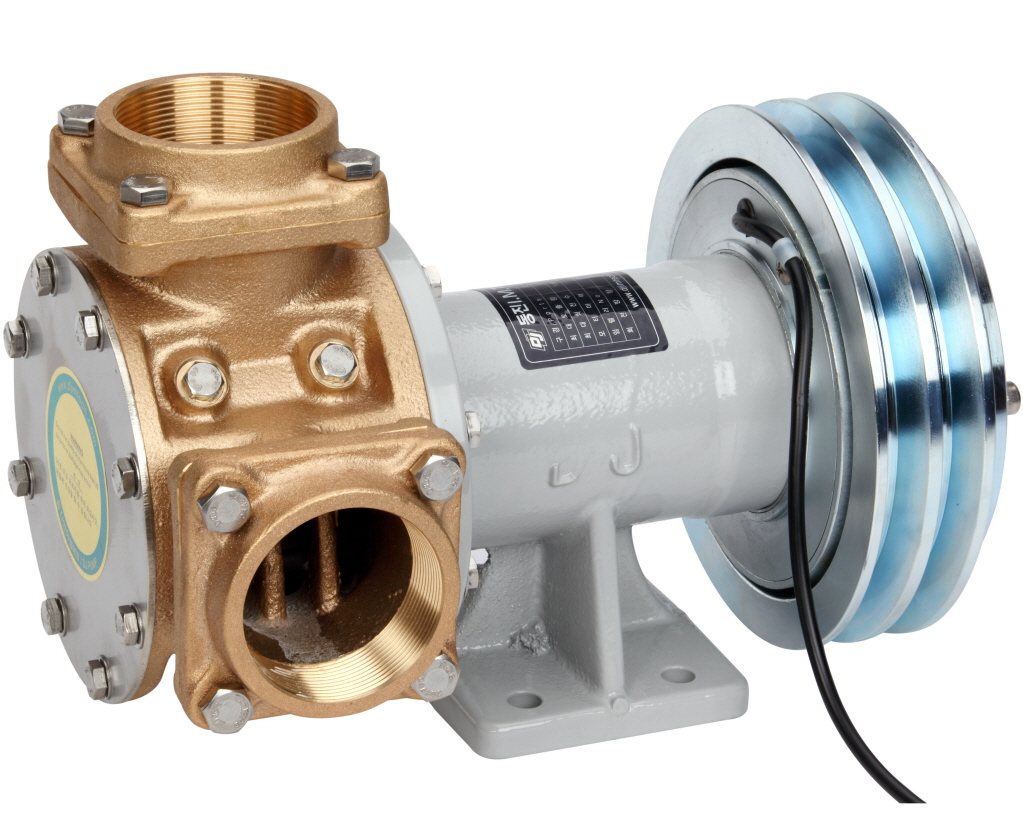

Usage of the flexible electronic clutch pump : For ship ( Bilge under the ship , deck cleaning, Fighting the fire)
DETAIL INFO
Body / Housing
FCD / Bronze
Ports
2-1/2” PIPE
Driven Type
Electro-Magnetic Clutch
Impeller 08-17-1201
Pulley
8” Double Groove
Seal No.
Mechanical Seal(DJ-MS040)
Clutch
12V / 24V
Weight
34 Kg
Shaft
Stainless Steel
