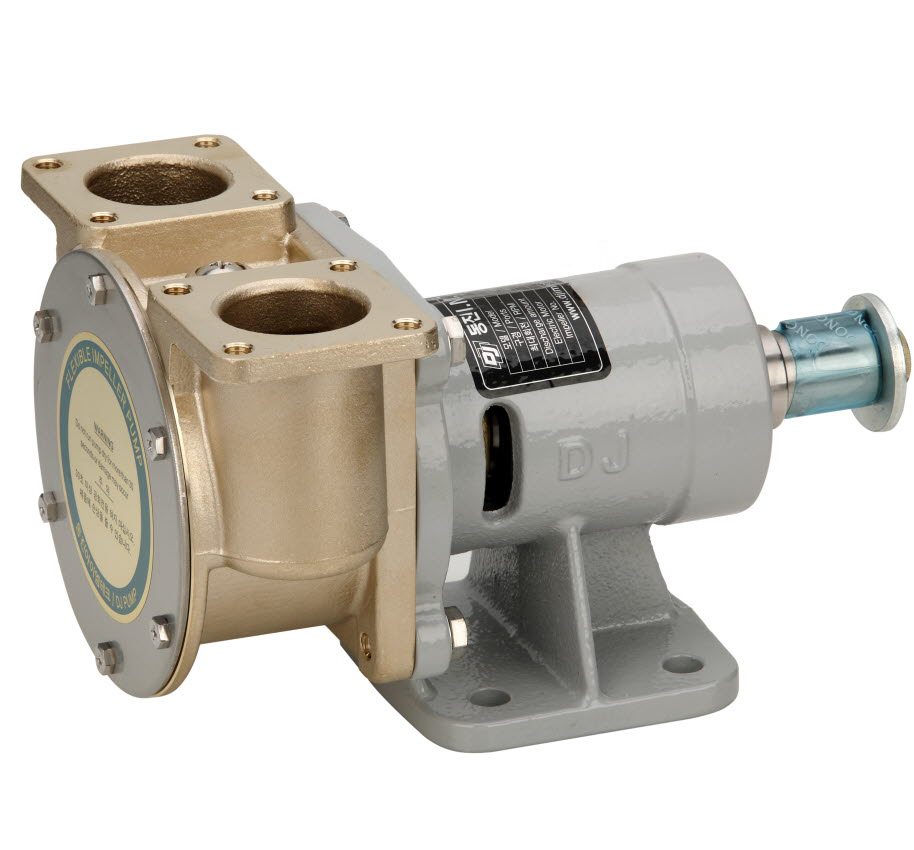

Description
It doesn’t need hood valve because of the strong self-sucking in rotation.
– Simplicity to install and operate because of the unnecessariness of defleting the air and filling out the water.
– Easiness to change the parts. Impeller can easily be changed by the unting the front cover.
– Possibility of lashing and backlashing
– Multi-functional pump which can carry the high viscosity of fluid, solid body , and sludge/slurry
– Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.
The usage of the flexible pump : For ship, seawater, manufacturing industry, food, husbandry, brewing and chemical medicine
DETAIL INFO
BOdy / Housing
FCD / Bronze
Ports
1-1/4” (32mm) Flange
Driven Type
Pulley
Impeller No.
002-0801 Neoprene (CR) Only
Driven Shaft
24mm
Seal
Mechanical Seal (DJ-MS020)
Shaft
Stainless steel Weight
5 Kg
