Description
Product Codes
| Code | Description | Circuit Breaker | Gypsy For Chain | Gypsy For Rope | Line Speed at W.L | Max Line Speed | Maximum Pull | Model type | Motor size | Net Weight | Power Supply | Type | Amps at Working Load (A) | Working load (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

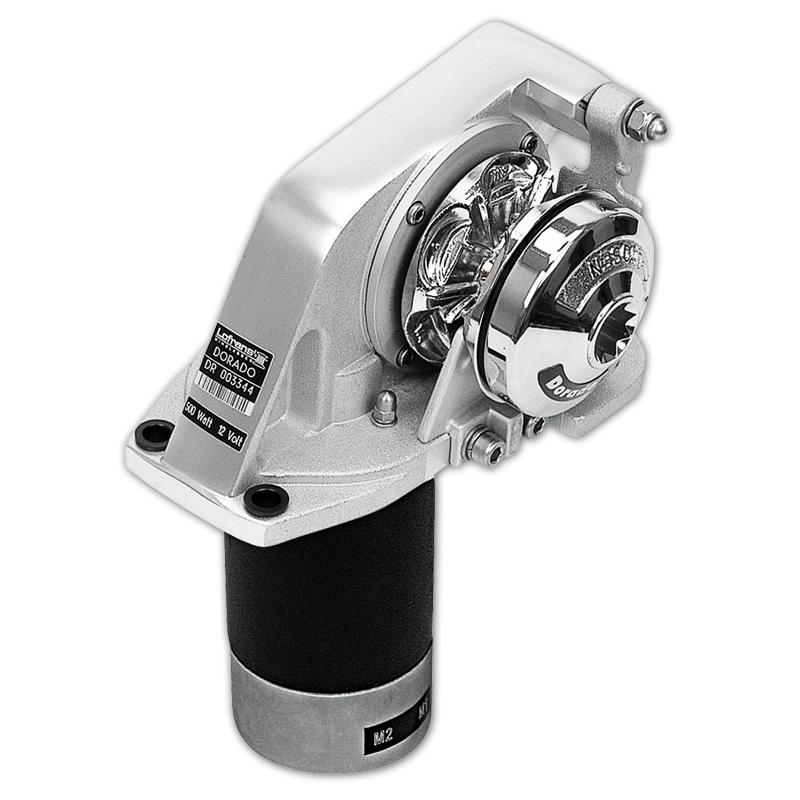

| 409568 | WINDLASS H. DOR. ALU R. 500W/12V 6-3/16"BBB | – | 6 mm, ISO 4565 | 10-12 mm 3-strand 14mm 3-strand rope | 18 m/min | 24 m/min | 600 kg | port | 500 W | 10 kg | 12 V | Low Profile | 65 | 70 |
| 409569 | WINDLASS H. DOR. ALU R. 800W/12V 8-5/16"BBB-5/16"HT | – | 8 mm, ISO 4565 / DIN 766 | 12 mm 3-strand 14mm 3-strand rope | 20 m/min | 25 m/min | 650 kg | port | 800 W | 11 kg | 12 V | Low Profile | 80 | 80 |
| 600048 | WINDLASS H. DOR. ALU R. 800W/12V 6-3/16"BBB | – | 6 mm, ISO 4565 | 10-12 mm 3-strand14mm 3-strand rope | 20 m/min | 25 m/min | 650 kg | port | 800 W | 11 kg | 12 V | Low Profile | 80 | 80 |
