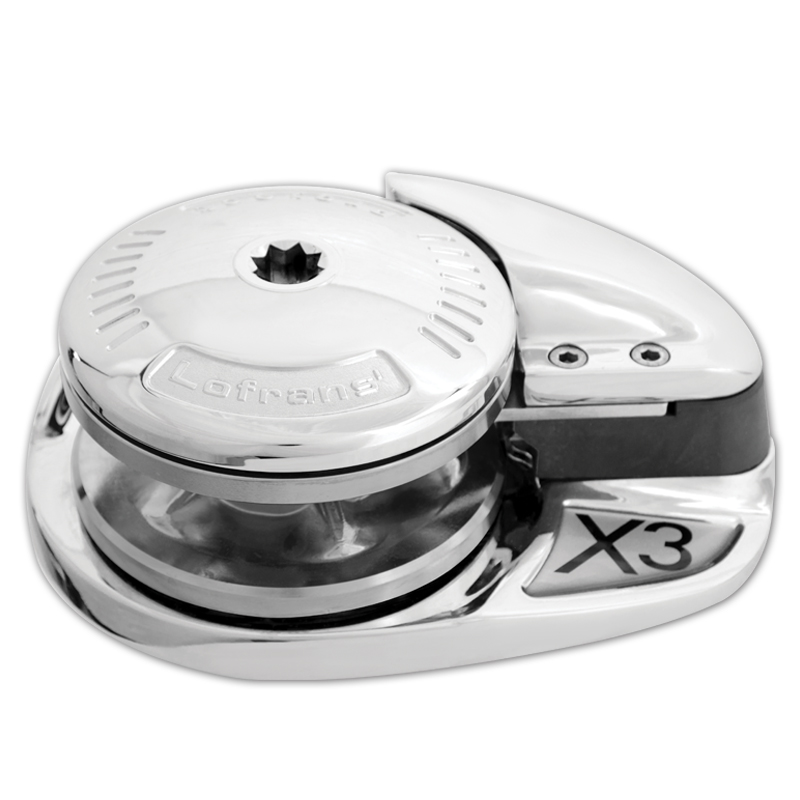

Name: X3 - Vertical Windlass
Brand: Lofrans
SKU: LF-187332-31E149

Description

Product Codes

Code	Description	Circuit Breaker	Construction	Gypsy For Chain	Gypsy For Rope	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Amps at Working Load (A)	Working load (kg)
472842	WINDLASS V. X3 CRO 1700W/12V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
472865	WINDLASS V. X3 CRO G+D 1500W/12V 10 3/8 HT		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
472866	WINDLASS V. X3 CRO 1500W/12V 10 3/8 HT		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
473004	WINDLASS V. X3 CRO G+D 1700W/12V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
473005	WINDLASS V. X3 CRO G+D 1700W/24V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
473006	WINDLASS V. X3 CRO 1700W/24V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
473208	WINDLASS V. X3 CRO G+D 1700W/12V 10 3/8 HT		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
473209	WINDLASS V. X3 CRO 1700W/12V 10 3/8 HT		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
473218	WINDLASS V. X3 CRO 1500W/24V 10DIN766	187332	Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
473252	WINDLASS V. X3 CRO G+D 1700W/24V 10 3/8 HT		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
473256	WINDLASS V. X3 CRO 1700W/24V 10 3/8 HT	187332	Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
57451	"WINDLASS V. X3 ALU G+D 1700W/12V 8-5/16" BBB-5/16" HT"		Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
57452	WINDLASS V. X3 ALU G+D 1700W/12V 10DIN766	187334	Aluminium	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
57453	WINDLASS V. X3 ALU G+D 1700W/12V 12-13DIN766		Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
600064	WINDLASS V. X3 CRO G+D 1700W/12V 8-5/16"BBB-5/16"HT		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
600065	WINDLASS V. X3 CRO 1700W/12V 8-5/16 ''BBB-5/16''HT		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
600068	WINDLASS V. X3 CRO G+D 1700W/24V 8-5/16''BBB-5/16''HT		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
601070	WINDLASS V. X3 CRO 1500W/12V 8-5/16"BBB-5/16"HT		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
601075	WINDLASS V. X3 CRO 1500W/12V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
601079	WINDLASS V. X3 CRO G+D 1500W/12V 8-5/16"BBB-5/16"HT		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
601084	WINDLASS V. X3 CRO G+D 1500W/12V 12-13DIN766		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
601095	WINDLASS V. X3 CRO 1500W/24V 8-5/16"BBB-5/16"HT	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601097	WINDLASS V. X3 CRO 1500W/24V 10 3/8 HT	187332	Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601098	WINDLASS V. X3 CRO 1500W/24V 12-13DIN766	187332	Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601102	WINDLASS V. X3 CRO G+D 1500W/24V 8-5/16"BBB-5/16"HT	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
601107	WINDLASS V. X3 CRO G+D 1500W/24V 12-13DIN766	187332	Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
601108	WINDLASS V. X3 CRO 1700W/24V 8-5/16"BBB-5/16"HT	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	Low Profile	90	200
601128	WINDLASS V. X3 ALU 1700W/12V 8-5/16''BBB-5/16''HT	187334	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601129	WINDLASS V. X3 ALU 1700W/12V 10 3/8 HT		Aluminium	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601131	WINDLASS V. X3 ALU 1700W/12V 10DIN766	187334	Aluminium	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601132	WINDLASS V. X3 ALU G+D 1700W/12V 10 3/8 HT	187334	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
601133	WINDLASS V. X3 ALU 1700W/24V 10 3/8 HT	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601134	WINDLASS V. X3 ALU 1700W/24V 12-13DIN766	187332	Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601135	WINDLASS V. X3 ALU 1700W/24V 10DIN766	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601136	WINDLASS V. X3 ALU G+D 1700W/24V 8-5/16"BBB-5/16"HT	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
601137	WINDLASS V. X3 ALU G+D 1700W/24V 10 3/8 HT	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
601138	WINDLASS V. X3 ALU G+D 1700W/24V 12-13DIN766		Αluminium	12 mm, ISO 4565 / 13mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
601139	WINDLASS V. X3 ALU G+D 1700W/24V 10DIN766	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
602099	WINDLASS V. X3 CRO 1500W/12V 10DIN766	187333	Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602101	WINDLASS V. X3 CRO G+D 1700W/12V 10DIN766		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
602102	WINDLASS V. X3 CRO 1700W/12V 10DIN766		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
602103	WINDLASS V. X3 CRO G+D 1700W/24V 10DIN766		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
602104	WINDLASS V. X3 CRO 1700W/24V 10DIN766		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
602237	WINDLASS V. X3 ALU 1700W/12V 12-13DIN766	187334	Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
602238	WINDLASS V. X3 ALU 1700W/24V 8-5/16"BBB-5/16"HT	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	Low Profile	90	200
602240	WINDLASS V. X3 ALU G+D 1500W/24V 8-5/16"BBB-5/16"HT	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602241	WINDLASS V. X3 ALU G+D 1500W/24V 10 3/8 HT	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602242	WINDLASS V. X3 ALU G+D 1500W/24V 10DIN766	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602243	WINDLASS V. X3 ALU G+D 1500W/12V 8-5/16"BBB-5/16"HT	187333	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
602244	WINDLASS V. X3 ALU G+D 1500W/12V 10 3/8 HT		Αluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
602245	WINDLASS V. X3 ALU G+D 1500W/12V 10DIN766		Αluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
602246	WINDLASS V. X3 ALU 1500W/24V 8-5/16"BBB-5/16"HT	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602247	WINDLASS V. X3 ALU 1500W/24V 10 3/8 HT	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602248	WINDLASS V. X3 ALU 1500W/24V 10DIN766	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602249	WINDLASS V. X3 ALU 1500W/12V 8-5/16"BBB-5/16"HT	187333	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602250	WINDLASS V. X3 ALU 1500W/12V 10 3/8 HT	187333	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602251	WINDLASS V. X3 ALU 1500W/12V 10DIN766	187333	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
636787	WINDLASS V. X3 CRO 1500W/24V 8-5/16"BBB-5/16"HT WITH INOX FINGER	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile, with INOX Finger	65	165
