Philippi 367346000 – DSR 2PSD /USB C/A

Description

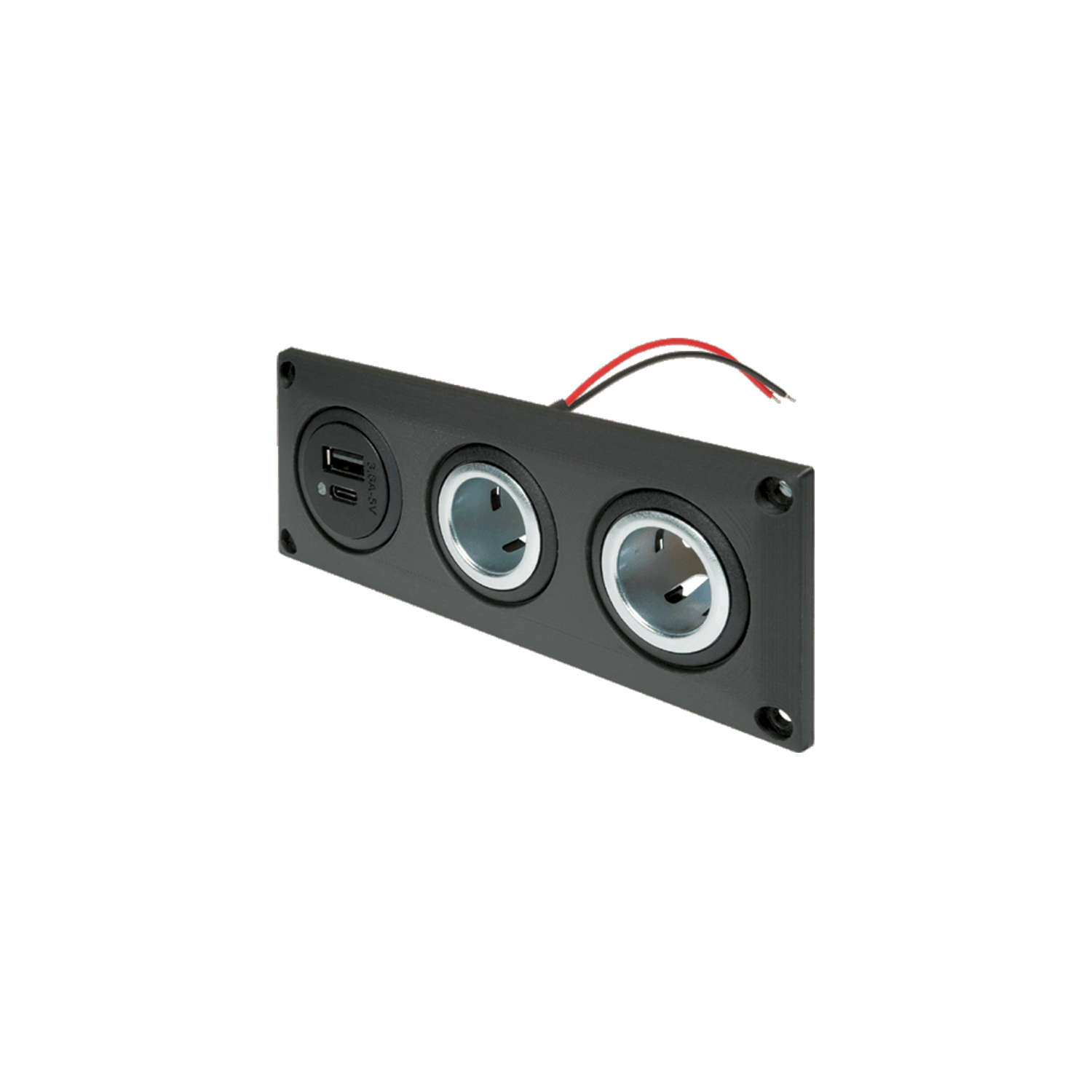

Philippi 367346000 – DSR 2PSD /USB C/A is an assembly consisting of a USB C/A double socket with blue LED and two power sockets. The USB socket has an output of 5 V DC with a maximum current of 3.6 A and is compatible with 12-24 V DC input. It comes with various protection features such as overload, reverse polarity, overtemperature, short circuit, and overvoltage protection. The assembly also includes two power sockets with an inner diameter of 21 mm, suitable for universal plugs. It is designed for operating auxiliary devices in cars, boats, and caravans and has a load capacity of 20 A with a 2.5 mm2 cable cross-section or 16 A with a 1.5 mm2 cable cross-section. The dimensions of the assembly are 144 x 56 x 7 mm, with an installation depth of 55 mm.
