POD Propulsion Systems

Description

Unrivaled performance and comfort

Key Facts

• Up to 20 % more efficient than a regular shaftline propulsion
• Power Take In options available for hybrid applications
• Propulsion, steering, electronics and gas exhaust all-in-one
• Both recreational and professional vessels are supported

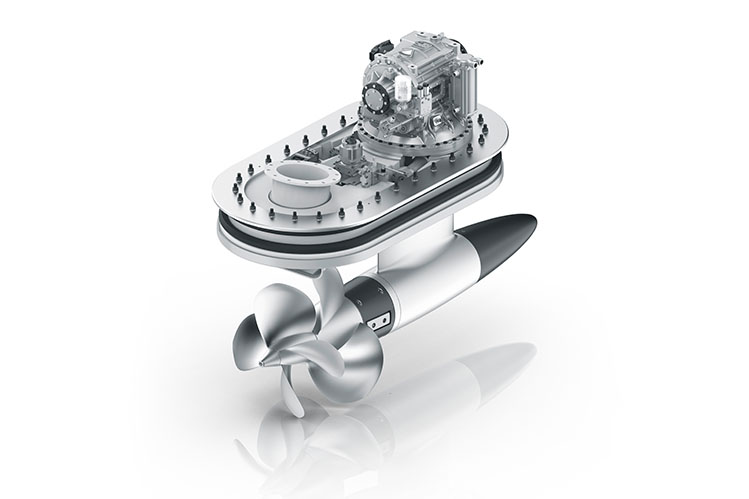

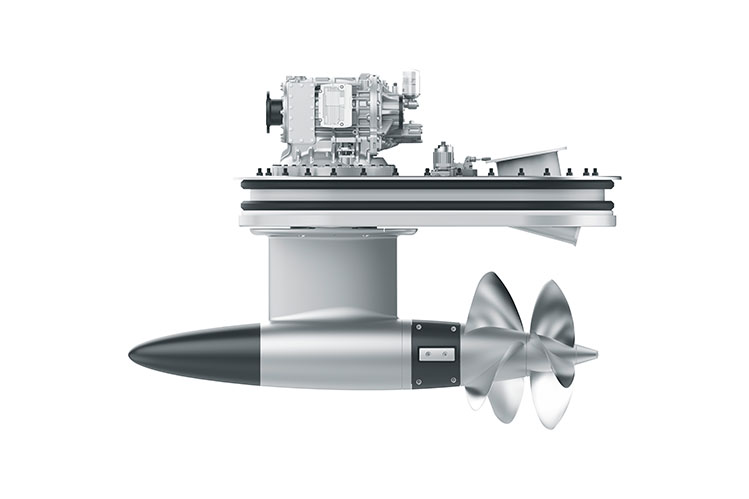

ZF POD propulsion systems offer integrated propulsion and steering systems for large vessels of all types: The solutions ensure unprecedented propulsion efficiency, easy maneuverability, more onboard available space and top comfort and reliability, no matter what application. The ZF POD propulsion systems are compatible with all main marine OEM engines. The POD 4600 is designed for a power range of up to 1.250 kW (1,700 hp), while the ZF POD 4900 covers a power range of up to 1.470 kW (2,000hp).

Benefits

Complete pod propulsion systems including transmission, rudder system, and integrated gas exhaust systemExtremely compact design Easy installation: both tunnel and deadrise design supported, drives can be arranged inside the engine room from top or bottomHigh propulsion efficiencyReliability of the electro-hydraulic steering unitState of the art mechanical solutions and integrated sensors Easy maintenance and highest reliability over the lifetime of the vesselInterfaces with main navigation systems and thrusters are availableCompatible with main OEM combustion engines and electric motors

Technical data

Main dataZF POD 4600ZF POD 4900Max. input power [kw / hp] @ 2,450 rpm1,268 / 1,7001,472 / 2,000Max. input torque [Nm]5,0366,107Max. bollard pull each unit [tons]9.2Reduction ratio2.4342.434 – 2.612Unit dry weight [kg / lb]1,540 / 3,3951,580 / 3,483Propellers diameter [mm / in]up to 978 / 38.5InstallationTwin / multipleHullPlaning and semi-planingZF duty ratingsPleasure: 0.5275 kW/rpmLight: 0.4382 kW/rpmMedium: 0.3771 kW/rpmPleasure: 0.6400 kW/rpmLight: 0.5757 kW/rpmMedium: 0.4262 kW/rpmMTBO [hours]12,000Speed range [knots]20 to 35Type approvalsRINA, BV, Lloyds, ABSPTO (optional)SAE C 650 Nm

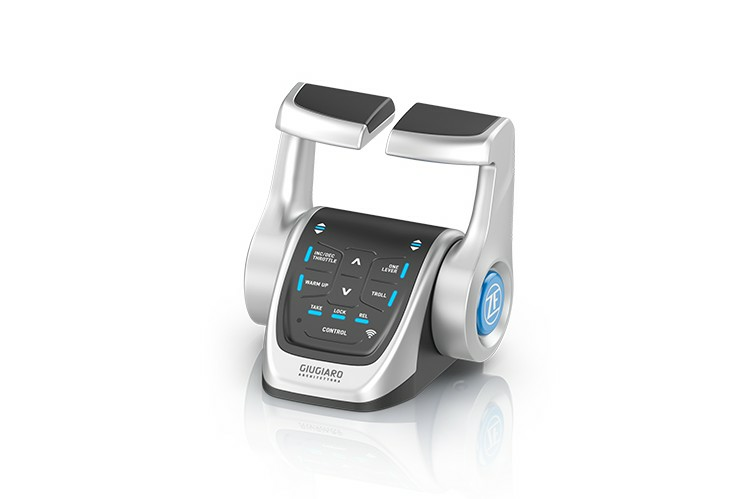

Control system: TotalCommand

The ZF POD Propulsion systems integrate the latest ZF control technology: TotalCommand, the latest CAN-bus communication technology with the industry’s best multifunction control heads to accommodate up to six stations. Main characteristics:Industry-leading shifting performanceAdaptive gear engagementUnmatchable clutch responsiveness and precisionCE marking, USCG and ABYC compliantIACS compliant and FULL class (ABS, DNV, Lloyds, etc.)Assisted joystick and Dynamic Positioning functions with automatic current and wind compensationCompatible with main autopilot systemsReduced complexity (plug and play, fewer harnesses, transmission-mounted processor option) Learn more about TotalCommand

Further information

Press release: Propelling Forwards: ZF Premiers POD Propulsion 4600 System for Large Vessels in Azimut Grande 26M
