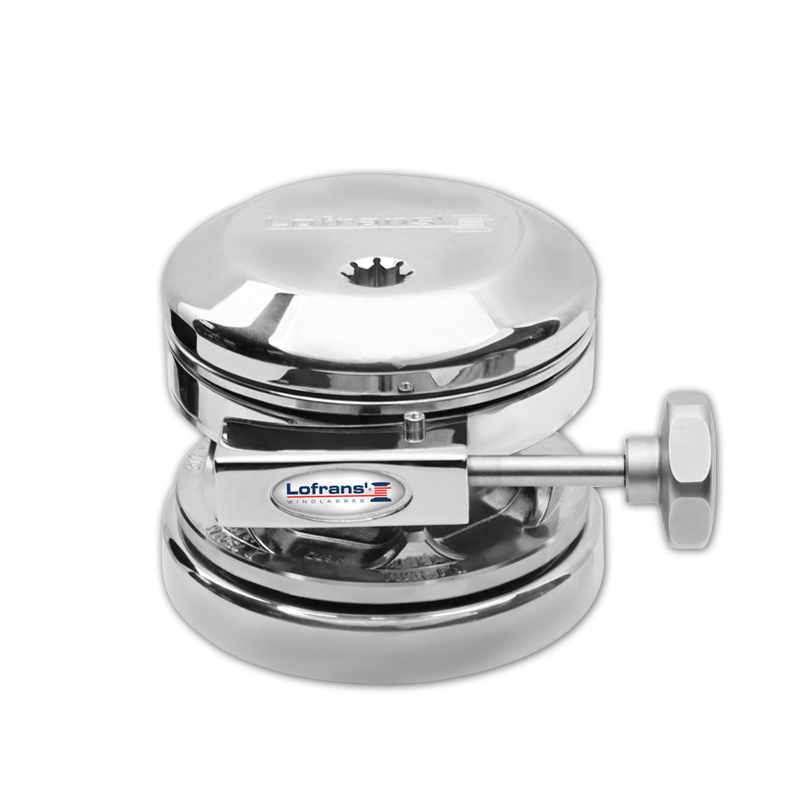

SX3.5 – Vertical Windlass

SKU: LF-C72F6FC5

Brand: Lofrans

Main features:

  • Luxury stainless steel base and drum
  • With drum or low profile
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • Anodised marine aluminium gearbox
  • IP66 1700W Heavy-duty electric motor
  • Chain pipe available as an option

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
  • Chain pipe also available as an option, code 636312

Fiyat ve stok durumu için bizimle iletişime geçin.
Marin ekipmanları ve yedek parçalar konusunda uzman ekibimiz size yardımcı olmaya hazır.

Description

Product Codes

CodeDescriptionCircuit BreakerGypsy For ChainMax Line SpeedMaximum PullMotor sizeNet WeightPower SupplyTypeAmps at Working Load (A)Working load (kg)
600084WINDLASS V. SX3.5 S/S G+D 1700W/12V 10 3/8 HT–10 mm, ISO 456537 m/min1700 kg1700 W50 kg12 VWith Drum185215
600085WINDLASS V. SX3.5 S/S G+D 1700W/24V 10 3/8 HT–10 mm, ISO 456537 m/min1700 kg1700 W50 kg24 VWith Drum95220
600086WINDLASS V. SX3.5 S/S G+D 1700W/12V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76637 m/min1700 kg1700 W50 kg12 VWith Drum185215
600087WINDLASS V. SX3.5 S/S G+D 1700W/24V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76637 m/min1700 kg1700 W50 kg24 VWith Drum95220
600088WINDLASS V. SX3.5 S/S G+D 2300W/24V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76635 m/min1900 kg2300 W60 kg24 VWith Drum180265
600090WINDLASS V. SX3.5 S/S G+D 2700W/24V 14mm–14 mm35 m/min2000 kg2700 W60 kg24 VWith Drum210320
602372WINDLASS V. SX3.5 S/S G+D 2300W/24V 10 3/8 HT–10 mm, ISO 456535 m/min1900 kg2300 W58 kg24 VWith Drum180265
602373WINDLASS V. SX3.5 S/S G+D 2700W/24V 12-13DIN766–12mm ISO 4565/13 mm DIN 76632 m/min2400 kg2700 W58 kg24 VWith Drum125320
635984WINDLASS V. SX3.5 S/S 1700W/12V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76637 m/min1700 kg1700 W48 kg12 VLow Profile185215
635985WINDLASS V. SX3.5 S/S 1700W/24V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76637 m/min1700 kg1700 W48 kg24 VLow Profile95220
635986WINDLASS V. SX3.5 S/S 2300W/24V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76635 m/min1900 kg2300 W58 kg24 VLow Profile180265
636099WINDLASS V. SX3.5 S/S 2700W/24V 12-13DIN766–12 mm, ISO 4565 / 13mm, DIN 76635 m/min2000 kg2700 W60 kg24 VLow Profile210320
636208WINDLASS SX3,5 HYD 14MM CHAIN–14 mm16 m/min2500 kgHydraulic – 8cc60 kg–Low Profile–650
