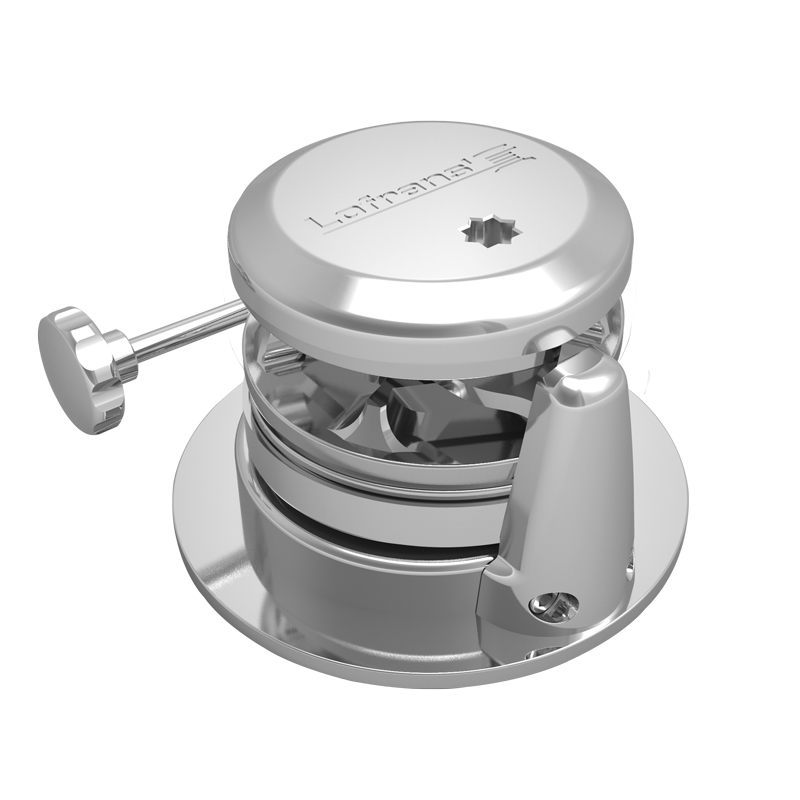

SX4 – Vertical Windlass

SKU: LF-636091

Brand: Lofrans

Main features:

  • Compact round base design
  • Marine AISI 316L stainless steel construction
  • With drum or low profile
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • Ηeavy-duty electric motor
  • Anodised marine aluminium gearbox
  • Chain pipe available as an option

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
  • Chain pipe also available as an option, code 636313

Fiyat ve stok durumu için bizimle iletişime geçin.
Marin ekipmanları ve yedek parçalar konusunda uzman ekibimiz size yardımcı olmaya hazır.

Description

Product Codes

CodeDescriptionMotor sizePower SupplyMaximum PullWorking load (kg)Line Speed at W.LMax Line SpeedNet Weight with Low Profile (kg)Circuit BreakerHydraulic PressureHydraulic FlowTypeGypsy For ChainAmps Work Load (A)Net Weight with Drum (kg)Pull Type
636290WINDLASS V. SX4 INOX ROUND G+D 2300W/24V 12-13DIN7662300 W24 V2100 kg50013 m/min25 m/min72–––With Drum12 mm, ISO 4565/ 13 mm, DIN 76616082CW
636291WINDLASS V. SX4 INOX ROUND G+D 2700W/24V 12-13DIN7662700 W24 V2500 kg53013 m/min28 m/min75–––With Drum12 mm, ISO 4565/ 13 mm, DIN 76617085CW
636292WINDLASS V. SX4 INOX ROUND 2300W/24V 12-13DIN7662300 W24 V2100 kg50013 m/min25 m/min72–––Low Profile12 mm, ISO 4565/ 13 mm, DIN 76616082CW
636293WINDLASS V. SX4 INOX ROUND 2700W/24V 12-13DIN7662700 W24 V2500 kg53013 m/min28 m/min75–––Low Profile12 mm, ISO 4565/ 13 mm, DIN 76617085CW
636294WINDLASS V. SX4 INOX ROUND HYD 12-13DIN766Hydraulic – 8cc–2500 kg65016 m/min16 m/min55–20032Low Profile12 mm, ISO 4565/ 13 mm, DIN 766–60CW
636295WINDLASS V. SX4 INOX ROUND G+D HYD 12-13DIN766Hydraulic – 8cc–2500 kg65016 m/min16 m/min55–20032With Drum12 mm, ISO 4565/ 13 mm, DIN 766–60CW
636655WINDLASS V. SX4 INOX ROUND G+D 2700W/24V CW 14mm2700 W24 V2500 kg53013 m/min28 m/min75–––With Drum14 mm17085CW
639293WINDLASS V. SX4 INOX ROUND R. 2700W/24V 12-13DIN7662700 W24 V2500 kg53013 m/min28 m/min75636091––Low Profile12 mm, ISO 4565/ 13 mm, DIN 76617075CCW
639294WINDLASS V. SX4 INOX ROUND R. HYD 12-13DIN766Hydraulic – 8cc–2500 kg65016 m/min16 m/min55–20032Low Profile12 mm, ISO 4565/ 13 mm, DIN 766–55CCW
