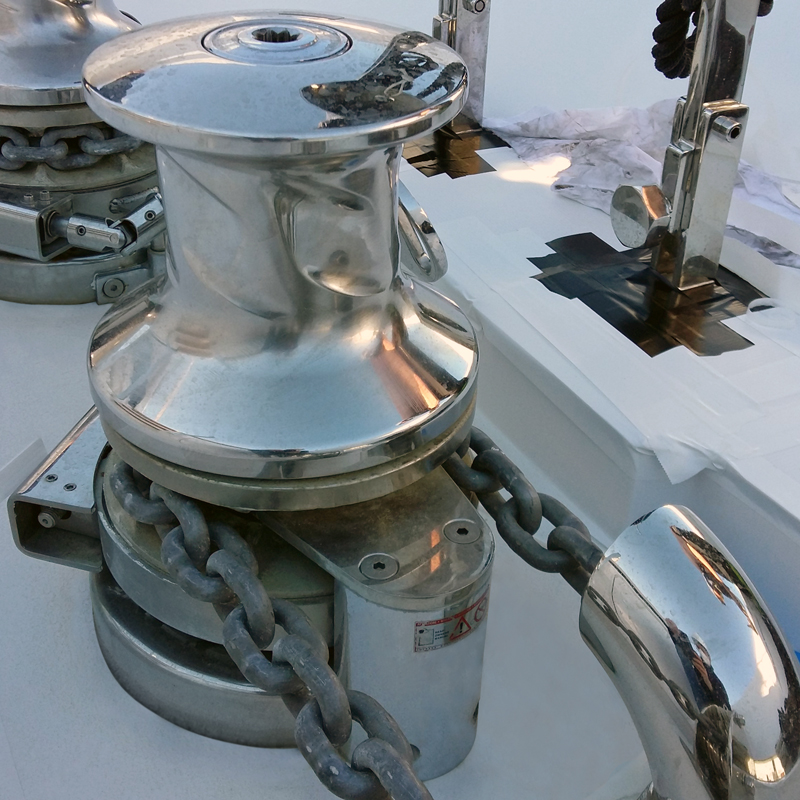

SX7 – Vertical Windlass

SKU: LF-1000-952539

Brand: Lofrans

The brand new Lofrans’ SX7 is the ideal option for the popular range of Mega Yachts of 80 -120 ft.

It combines top performance, absolute safety and style, while it is suitable for chains of 12-14 mm.

As all Lofrans’ windlasses, the SX7 is made of marine grade materials for extra mechanical strength and in order to withstand the marine environment.

Main features:

  • Luxury stainless steel base and drum
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • Anodised gearbox suitable for marine use
  • Available DC, AC and hydraulic motors
  • Chain pipe included in the package

Fiyat ve stok durumu için bizimle iletişime geçin.
Marin ekipmanları ve yedek parçalar konusunda uzman ekibimiz size yardımcı olmaya hazır.

Description

Product Codes

CodeDescriptionMotor sizePower SupplyMaximum PullLine Speed at W.LMax Line SpeedCircuit BreakerHydraulic PressureHydraulic FlowTypeGypsy For ChainAmps Work Load (A)Net Weight with Drum (kg)Working load (kg)Control Box
636459WINDLASS V. SX7 S/S G+D 3500W/24V 12-13DIN7663500 W24 V4500 kg13 m/min20 m/minYes (available separately)––With Drum (cw)12mm, ISO 4565 / 13mm, DIN 766200160825Included in the package
636464WINDLASS V. SX7 S/S G+D R. 3500W/24V 12-13DIN7663500 W24 V4500 kg13 m/min20 m/minYes (available separately)––With Drum (ccw)12mm, ISO 4565 / 13mm, DIN 766200160825Included in the package
636518WINDLASS V. SX7 S/S G+D 3500W/24V 14mm3500 W24 V4500 kg13 m/min20 m/minYes (available separately)––With Drum (cw)14 mm200160825Included in the package
636519WINDLASS V. SX7 S/S G+D R. 3500W/24V 14mm3500 W24 V4500 kg13 m/min20 m/minYes (available separately)––With Drum (ccw)14 mm200160825Included in the package
636520WINDLASS V. SX7 S/S G+D 4000W/400V 12-13DIN7664000 W400 V4500 kg13 m/min13 m/min–––With Drum (cw)12mm, ISO 4565 / 13mm, DIN 766–160850Included in the package
636521WINDLASS V. SX7 S/S G+D R. 4000W/400V 12-13DIN7664000 W400 V4500 kg13 m/min13 m/min–––With Drum (ccw)12mm, ISO 4565 / 13mm, DIN 766–160850Included in the package
636522WINDLASS V. SX7 S/S G+D 4000W/400V 14mm4000 W400 V4500 kg13 m/min13 m/min–––With Drum (cw)14 mm–160850Included in the package
636523WINDLASS V. SX7 S/S G+D R. 4000W/400V 14mm4000 W400 V4500 kg13 m/min13 m/min–––With Drum (ccw)14 mm–160850Included in the package
636524WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CWHydraulic – 8cc–5000 kg13 m/min13 m/min–20032With Drum (cw)14 mm–1451000–
636525WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CCWHydraulic – 8cc–5000 kg13 m/min13 m/min–20032With Drum (ccw)14 mm–1451000–
636526WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CWHydraulic – 8cc–5000 kg13 m/min13 m/min–20032With Drum (cw)12mm, ISO 4565 / 13mm, DIN 766–1451000–
636527WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CCWHydraulic – 8cc–5000 kg13 m/min13 m/min–20032With Drum (ccw)12mm, ISO 4565 / 13mm, DIN 766–1451000–
