Description

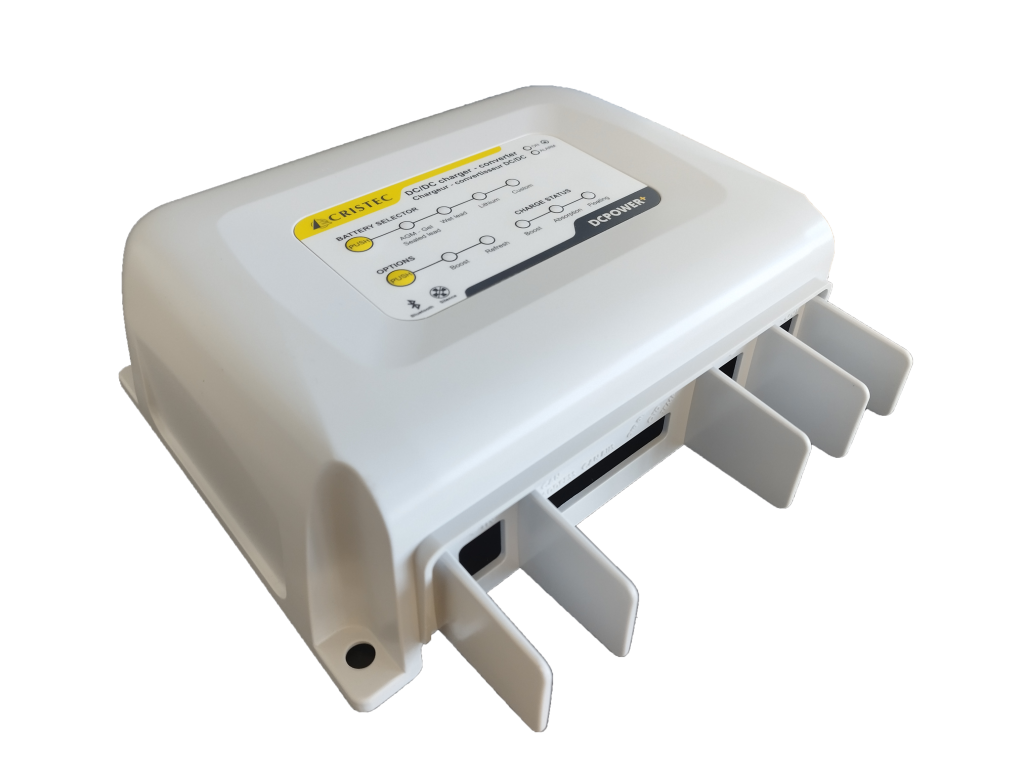

DCPOWER+

DCPOWER+ converter-chargers have been designed to charge a 12, 24, 36 or 48V battery bank from a 12, 24, 36 or 48V network. The most typical case of use is the 24V bow-thruster battery bank charge from the 12V onboard network (model YPO12- 24/30). They also allow a LiFePO4 battery to be recharged from a Lead battery connected to an alternator.
Thanks to their large scale of input and output voltage, they can be configured as a simple converter or as a battery charger.
In this case, the charging curve delivered is the same as the one of a smart charger :
– 5 steps
– all types of batteries

General characteristics

                  Silent operating

CRISTEC is the only manufacturer offering 800W
converter-chargers with natural convection
(without fan). This advantage gives the DCPOWER+
chargers a completely silent operation and an
optimized lifespan. It is therefore possible to install
them anywhere on board, including under a berth.

                  Low energy bluetooth

The chargers are equipped with a Wireless connection
Low Energy (BLE), variant of “classic” Wireless connection.
The major advantage of BLE is its low power
consumption as it consumes half of a classic Wireless connection.

                  No derating

Chargers have full charge up to +60°C (140°F) with
no loss, resistant to harsh environments.

Ignition protected

They can be installed in the engine room thanks
to ISO8846/SAE J1171 compliance which protects
against ignition of flammable gases.

                  5-stage charging profile

– Boost: charges batteries to 80% of full charge
– Absorption: slowly completes remaining charge to 100%
– Floating: maintains battery charge
– Automatic refresh: prevents sulphation and revitalizes batteries, selectable by keypad pushbutton
– Reboost: new automatic Boost phase if DC consumers and the state of batteries so require.

                  Adaptative charging

DCPOWER+ chargers are compatible with all types of batteries:
– Opened classic lead
– Sealed, gel or AGM
– Spiral sealed

                  Lithium ready

Lithium Iron Phosphate (LiFePO4) with BMS
Selection of your technology of battery is easy to do through the cover keypad.
