Description
TRIM TAB FOR BOAT

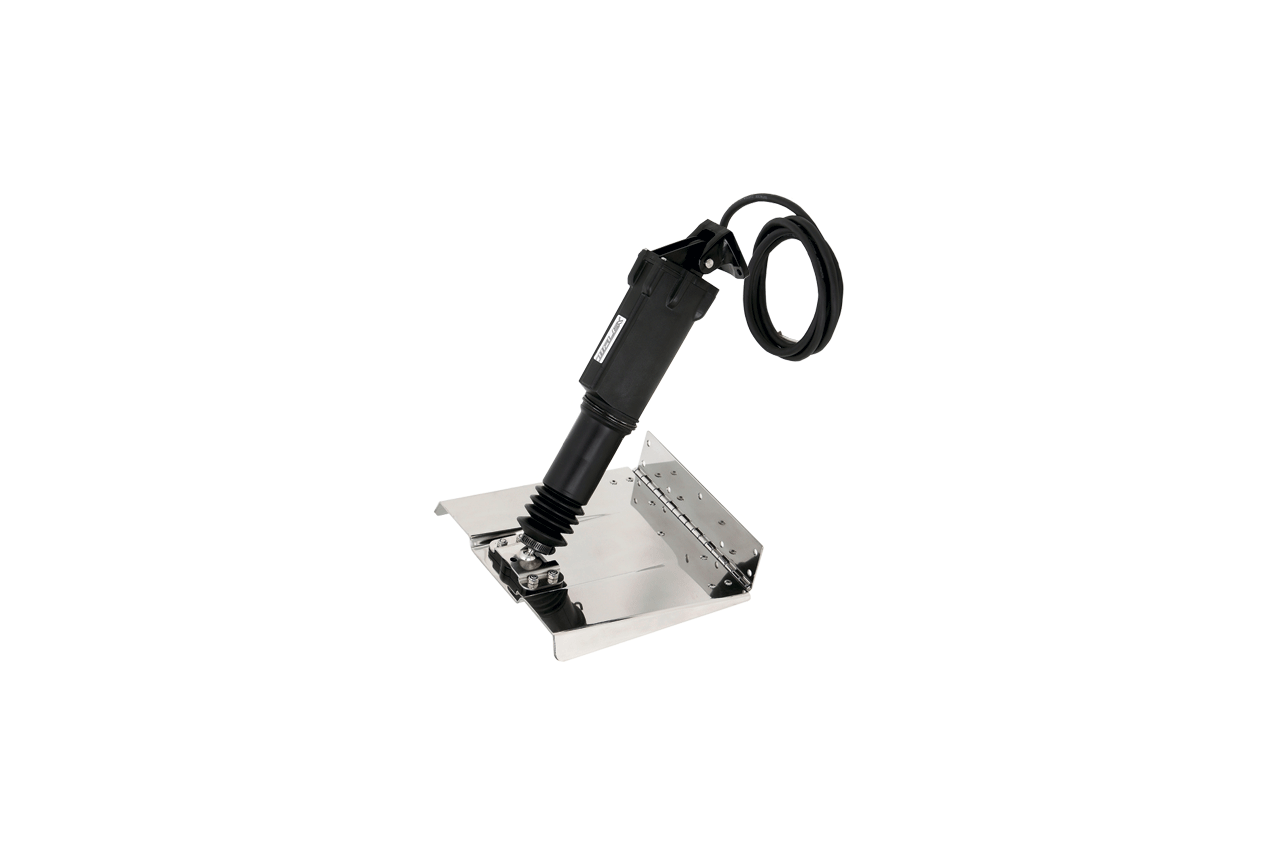

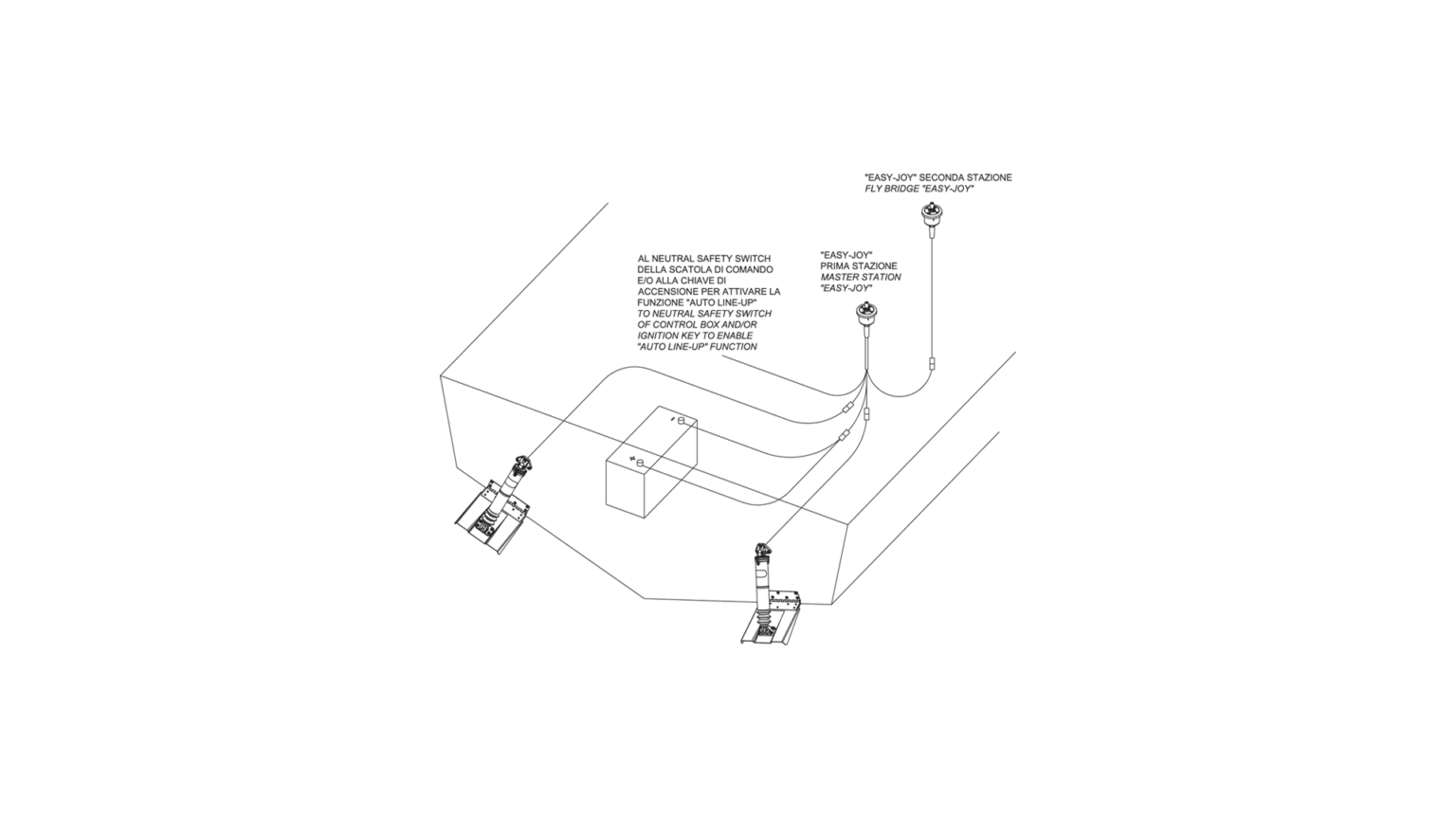

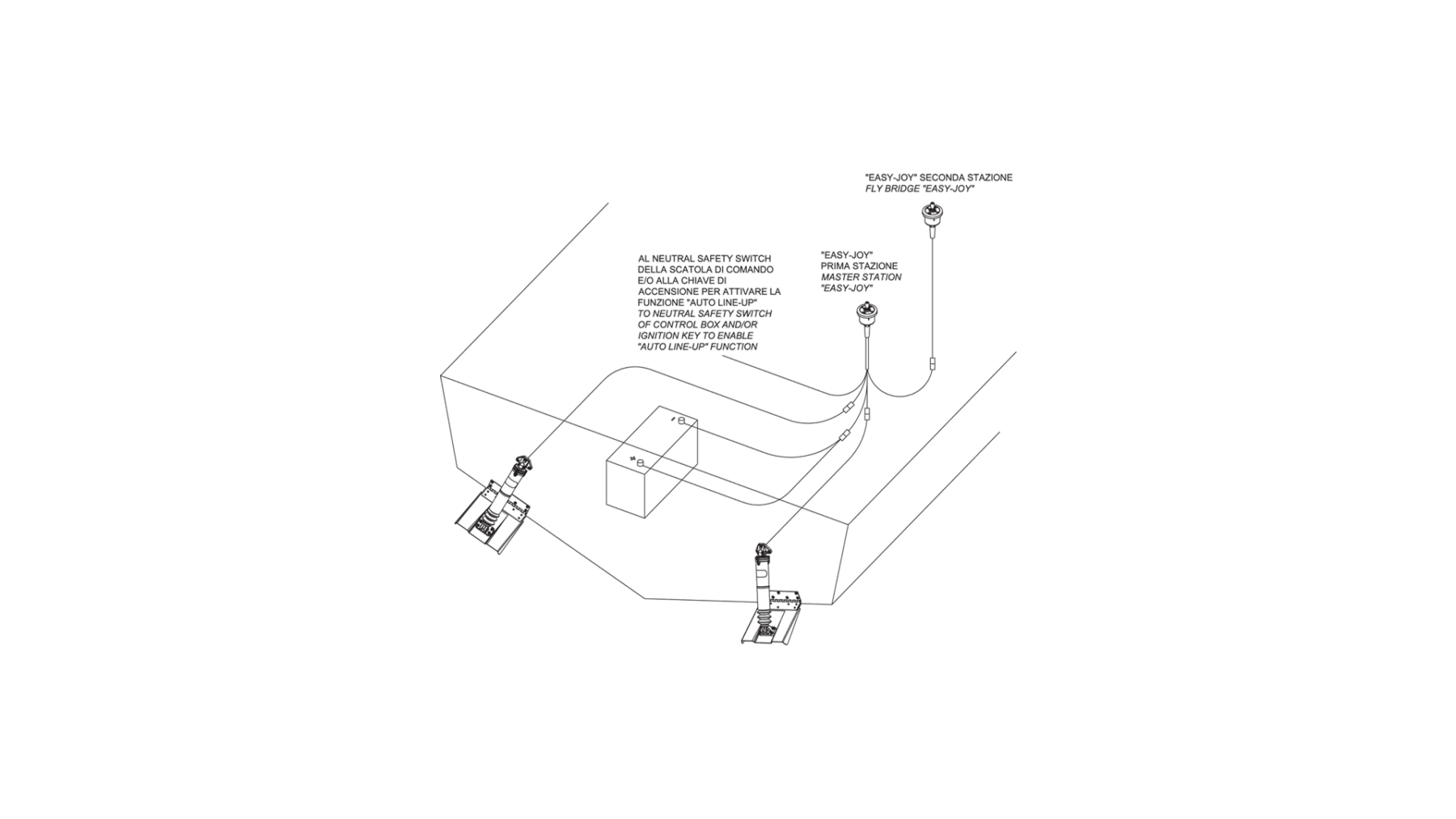

Uflex Trim Tabs have been specifically designed for easy installation using a quick connect bracket-actuator, requiring only one small hole per tab through the transom. The patented transom mounting bracket encapsulates the wiring to ensure protection against any wiring damage.
TRIM TAB MTT SYSTEM FEATURES
• Tab bracket with BALL JOINT
• Operating system with hardened steel ballscrew, suitable to withstand high push loads.
• Prompt and easy control with the innovative use of a Joystick (patented)
• AUTO-LINE UP: automatic flap re-alignment function when in neutral
• Completely sealed thermoplastic resin tab actuators: maximum protection guaranteed by dual seals and a rubber bellow (patented)
• Stainless steel rod and tabs
• The innovative profile of the HP tabs increases the efficiency of the system
• Non polished stainless steel tabs also available (standard & EM tabs only).
• Hole hinge design (patented) allows for precise retrofit replacement with Lenco® and Bennett® same size tabs
• Fully maintenance free
• Voltage:12V DC
• Waterproof: IP68 protection
• CE Certification
• Meets with the EN 60945 standards
TRIM TAB STANDARD COMPONENTS (SINGLE ACTUATOR PER TAB)
• 1 pair of electromechanical actuator complete with connection brackets and 2 m (6.56’) wiring harness.
• 1 joystick control unit with 0.50 m (1.64’) wiring harness
• 1 pair of stainless steel tabs. Tabs are sold separately: specify selected size when ordering
TRIM TAB OPTIONAL COMPONENTS:
• 1 extension wiring harness kit for the power cable and the actuator cables. Deutsch plugs included
• 1 second station joystick-2 control unit with 0.50 m (1.64’) wiring harness
• 1 extension wiring harness (6 m and 9 m for second station). Deutsch plugs included.
• 1 extension wiring harness (2 m for auto-line up). Deutsch plugs included.
• 1 zinc alloy sacrificial anode kit to neutralize the galvanic currents on tabs ( 2 anode kits for every 1 pair tab installation)
Technical Data
| Label | Value |
|---|---|
|
A |
228.6 mm (12.22″) |
|
B |
19.5 mm (0.77″) |
|
Ball Joint |
Tab bracket with ball joint |
|
Joystick |
Available |
|
AUTOLINE UP – automatic flap re-alignment function |
Yes |
|
Actuators |
thermoplastic resin – completely sealed |
|
Tabs |
stainless steel |
|
Voltage |
12VDC |
|
IP protection |
IP68 |
|
Certification |
CE – EN60945 |
|
Race application use |
not allowed |
Dimensions
Available Models
MTT systems – Applications – These recommendations should be used as a general reference only. Final selection should be made with the assistance of a qualified installation technician. For any further information please contact our Thecnical Service
BOAT LENGTH (‘) | BOAT LENGTH (m) | TAB SIZE L (tab length) x l (transom side) (“) | TAB SIZE L (tab length) x l (transom side) (cm) | TRANSOM MINIMUM HEIGHT |
|---|---|---|---|---|
14’ – 18’ | 4,5 – 5,5 | 9” x 9” | 22,8 x 22,8 | 31.03 cm (12.22”) |
16’ – 25’ | 5,0 – 8,0 | 12”x 9 | 30,5 x 22,8 | 31.03 cm (12.22”) |
18’ – 30’ | 5,5 – 9,0 | 12” x 12” | 30,5 x 30,5 | 31.03 cm (12.22”) |
26’ – 36’ | 8,0 – 11,0 | 12” x 18” | 30,5 x 45,7 | 31.03 cm (12.22”) |
Order Details
MTT systems – Applications – These recommendations should be used as a general reference only. Final selection should be made with the assistance of a qualified installation technician. For any further information please contact our Thecnical Service
| Model | Part Number | Description |
|---|---|---|
|
MTT 12-CH – 12V DC | 43250T |
2 AT12 actuators, 12V DC + 1 chrome joystick |
|
MTT 12-CH-LP 12V DC | 43251V |
2 AT12 actuators, 12V DC + 1 chrome low profile joystick |
|
| Spare parts |
|
|
BRS-C | 43039X |
Bracket kit – Connection between AT or AC actuators and boat |
|
BRT-C | 43040F |
Bracket kit – Connection between AT or AC actuators and tab |
|
EP 5 | 42440T |
Wiring harness extension for power cable 5,0 m (16.4’) |
|
EP 6 | 42302E |
Wiring harness extension for actuator cable 6,0 m (19.7’) |
|
EP 9 | 42439J |
Wiring harness extension for actuator cable 9,0 m (29.5’) |
