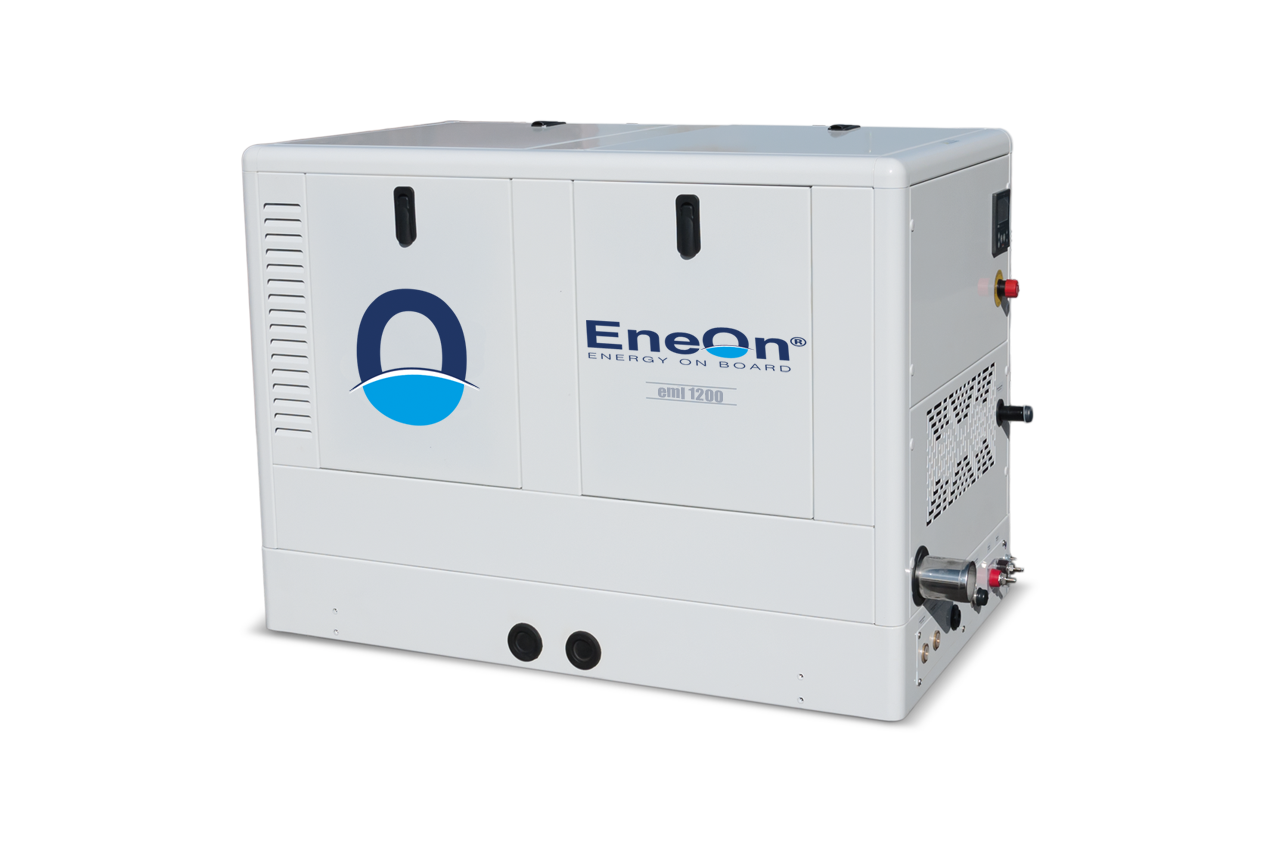

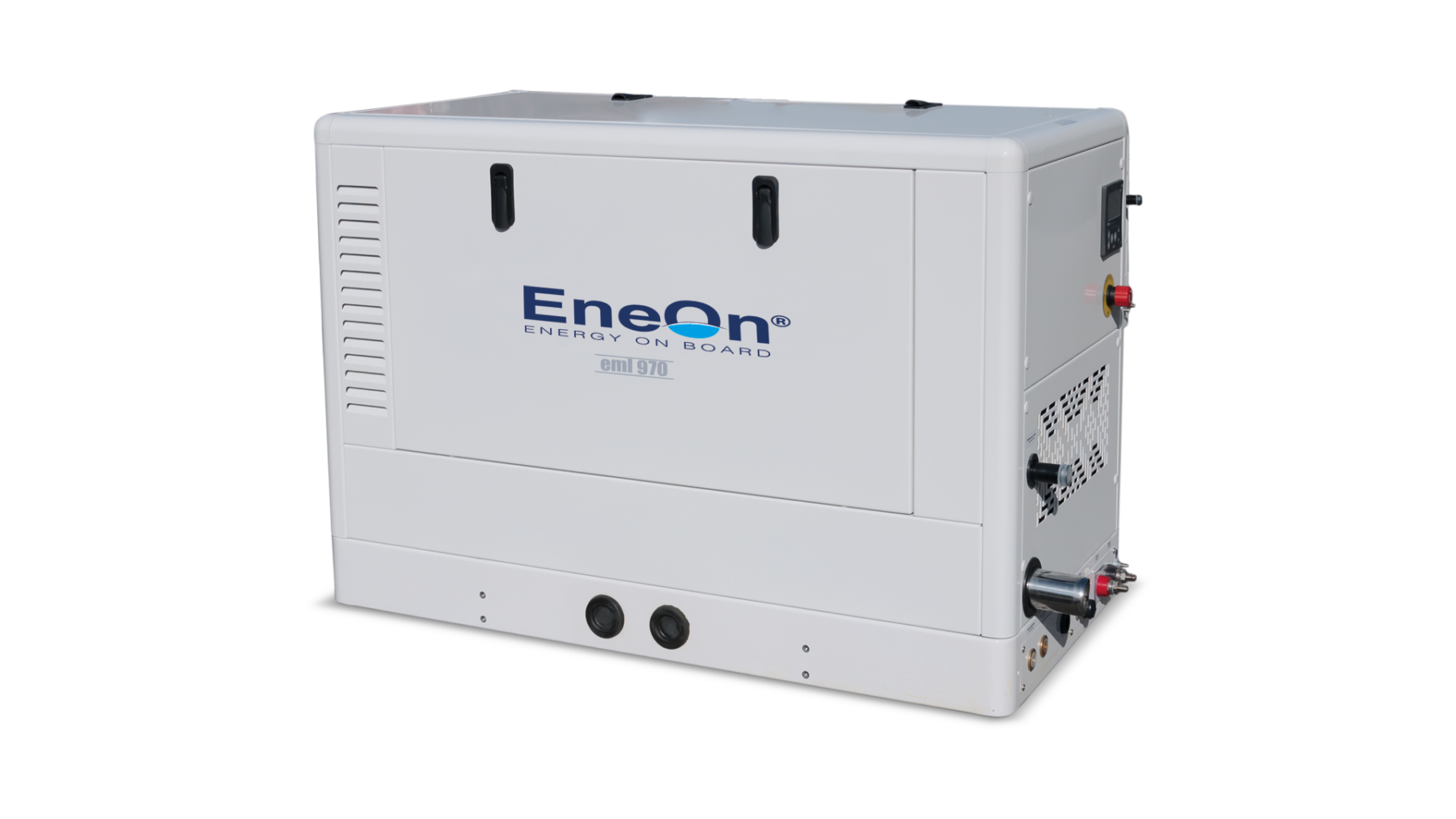

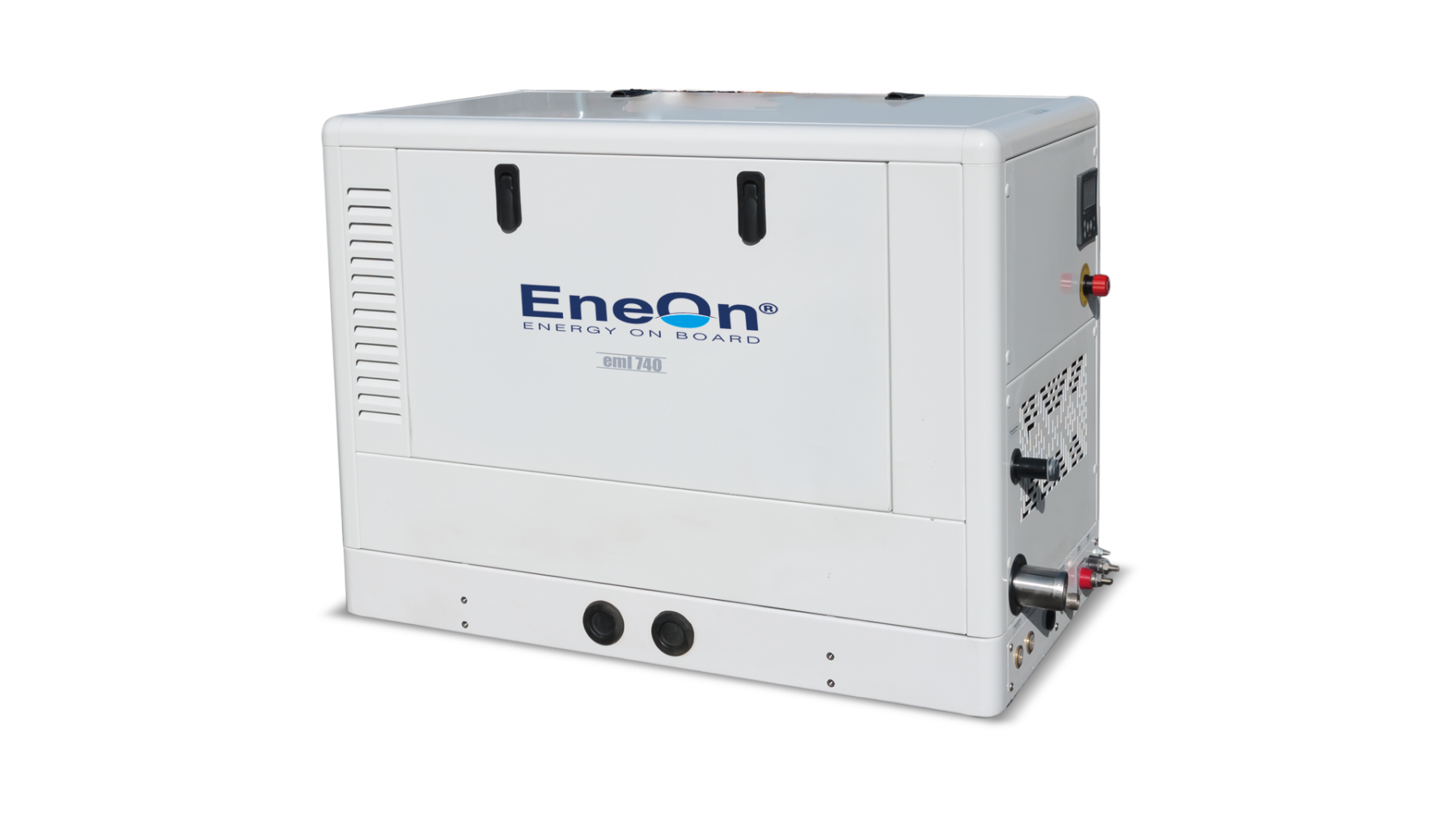

EML SERIES: SINGLE PHASE 1500 RPM MARINE GENERATORS (7.40 to 39.0 Kw)
Marine generators features
• Connection on one side
• Electronic management
• Easy maintenance
• Local and remote control
• Reduced dimensions and noise level
Marine generators standard equipment
• Sound proof canopy: Made entirely from marine grade aluminum (LEGA 5754 H111) powder coated.
• EOB® control panel: Waterproof control panel for engine protection with LCD display. Dimensions on the dashboard 96×96 mm, supplied separately for all the generators. Selector on board the generators for manual start bypassing the control panel.
• Generating set brackets: 4 steel brackets to attach the generator to the floor of the boat.
• Emergency button: Emergency button positioned on the Generating Set to allow for the immediate shutdown in case of danger or damage.
Marine generators optional equipment
• Silenced muffler kit
• Sea water intake kit
• Siphon breaker
• Water gas separator
• Electrical fuel pump
• Diesel prefilter with water separator
• Diesel water separator
• Manual oil extraction pump
Standards applied
• CE certified
• Power: ISO 8528
• Directive Machinery: 2006/42/CE – 89/392CEE – 98/37/CE
• Electromagnetic compatibility: 2004/108/CE – 89/336/CEE – 93/68/CEE
• Acoustic emission: 2005/88/CE – 2000/14/CE (sound guard version only)
Marine generators available Models: (230 V – 50Hz – 1Ph)
EML740 (7.4 Kw), EML970 (9.7 Kw), EML1200 (12.0 Kw), EML1800 (18.0 Kw), EML2500 (25.0 Kw); EML3900 (39.0 Kw)
Technical Data
| Label | Value |
|---|---|
|
Max power kVA |
7.4 (EML740); 9.0 (EML900); 12.0 (EML1200); 18.0 (EML1900); 25.0 (EML2500); 32.0 (EML3200); 39.0 (EML3900) |
|
Phase |
Single phase |
|
Voltage |
230 V |
|
Frequency |
50 Hz |
|
Engine cooling system |
Heat exchanger |
|
Noise level db(A) @7m |
54 |
|
Rpm |
1500 |
Available Models
EML series – features
Order Details
EML series – features
| Model | Part Number | Description |
|---|---|---|
|
EML740 | 24708H |
Single phase Eneon Generator – Max power 7.4 kVA |
|
EML970 | 24709K |
Single phase Eneon Generator – Max power 9.7 kVA |
|
EML1200 | 25421S |
Single phase Eneon Generator – Max power 12.0 kVA |
|
EML1800 | 25422U |
Single phase Eneon Generator – Max power 18.0 kVA |
|
EML2500 | 25423W |
Single phase Eneon Generator – Max power 25.0 kVA |
|
EML3900 | 25425A |
Single phase Eneon Generator – Max power 39.0 kVA |
|
| EML series – Eneon generators accessories |
|
|
Sea water kit | 22663B |
Sea water kit for EML740, EML970, EML1200, EML1800 generators |
|
Sea water kit | 22664D |
Sea water kit for EML2500, EML3900 generators |
|
Exhaust kit | 22665F |
Exhaust kit for EML740, EML970 generators |
|
Exhaust kit | 22666H |
Exhaust kit for EML1200, EML1800 generators |
|
Exhaust kit | 22667K |
Exhaust kit for EML2500, EML3900 generators |
|
Separator | 22668M |
Water/gas separator for EML740, EML970 generators |
|
Separator | 22669P |
Water/gas separator for EML1200, EML1800 generators |
|
Separator | 22670Y |
Water/gas separator for EML2500, EML3900 generators |
|
Syphon breaker | 22657G |
Syphon breaker for EML series generators |
