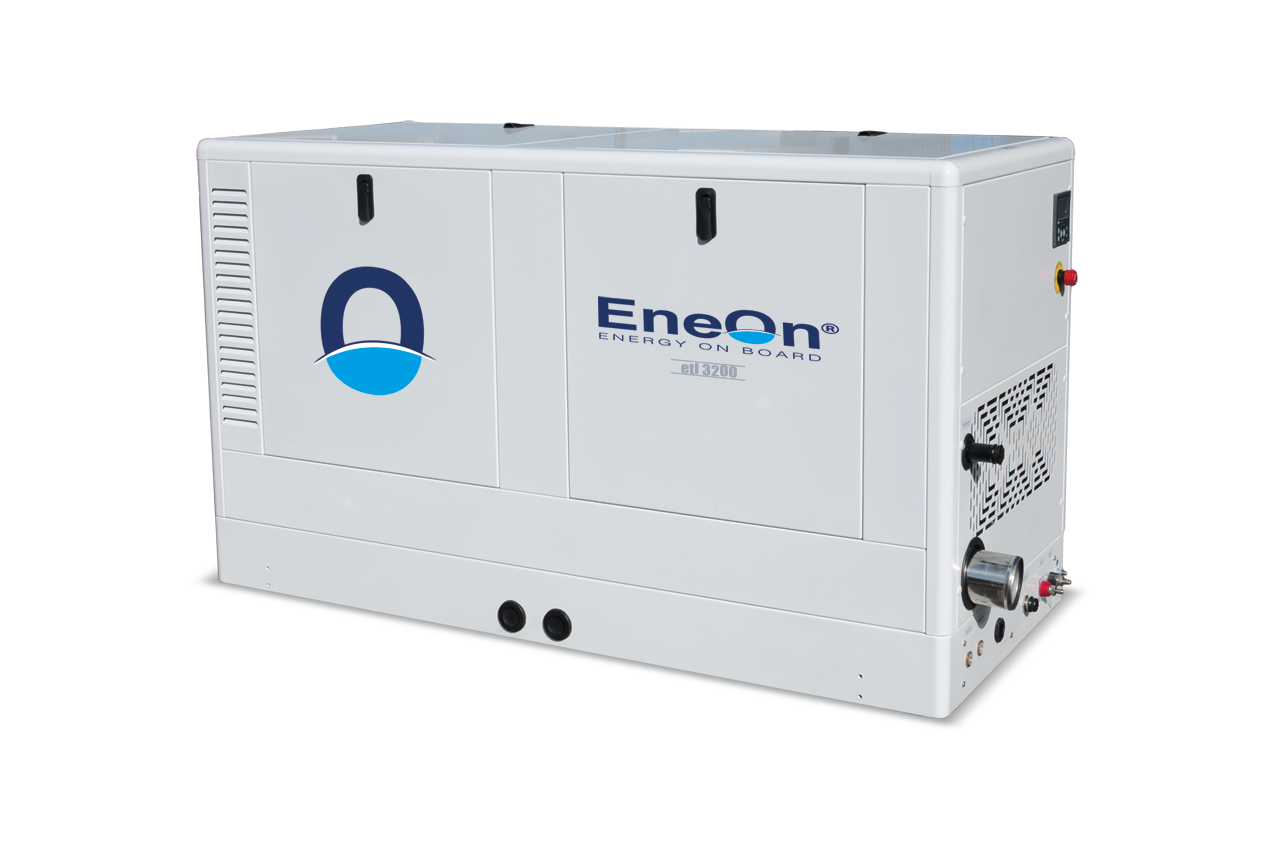

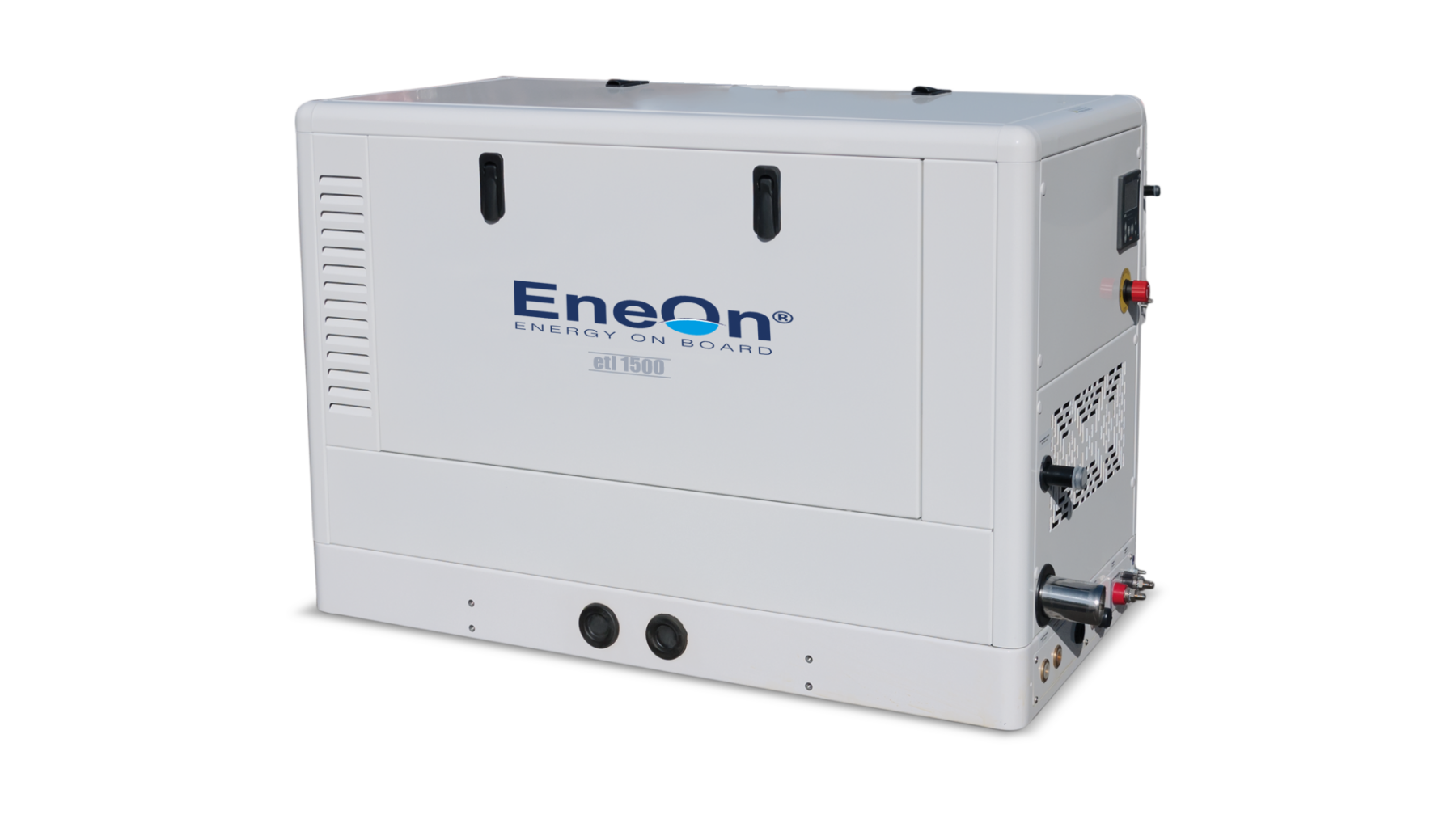

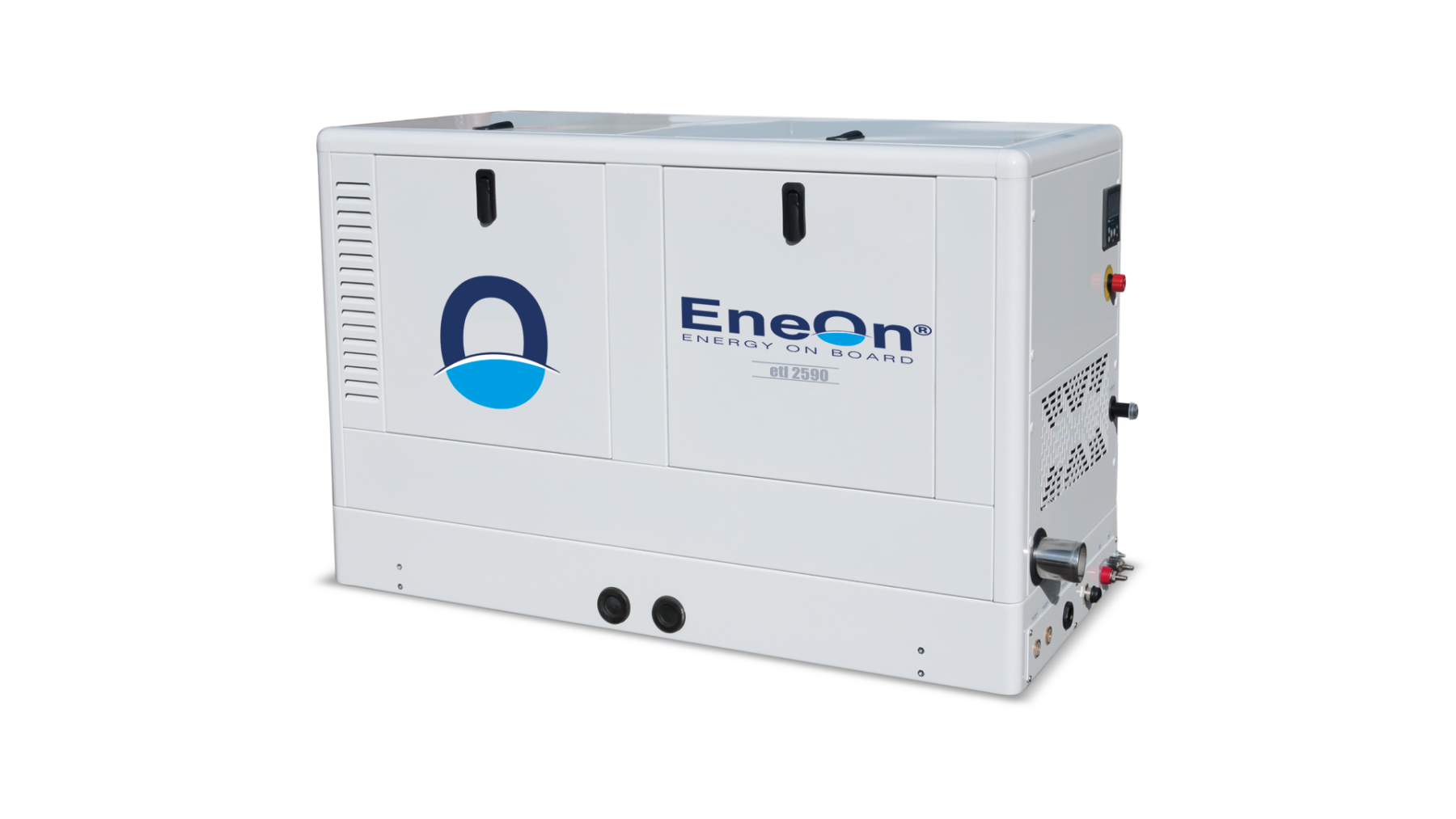

ETL SERIES: THREE PHASE 1500 RPM MARINE GENERATORS (15.0 to 47.0 kVA)
Marine generators features
• Connection on one side
• Electronic management
• Easy maintenance
• Local and remote control
• Reduced dimensions and noise level
Marine generators standard equipment
• Sound proof canopy: Made entirely from marine grade aluminum (LEGA 5754 H111) powder coated.
• EOB® control panel: Waterproof control panel for engine protection with LCD display. Dimensions on the dashboard 96×96 mm, supplied separately for all the generators. Selector on board the generators for manual start bypassing the control panel.
• Generating set brackets: 4 steel brackets to attach the generator to the floor of the boat.
• Emergency button: Emergency button positioned on the Generating Set to allow for the immediate shutdown in case of danger or damage.
Marine generators optional equipment
• Silenced muffler kit
• Sea water intake kit
• Siphon breaker
• Water gas separator
• Electrical fuel pump
• Diesel prefilter with water separator
• Diesel water separator
• Manual oil extraction pump
Standards applied
• CE certified
• Power: ISO 8528
• Directive Machinery: 2006/42/CE – 89/392CEE – 98/37/CE
• Electromagnetic compatibility: 2004/108/CE – 89/336/CEE – 93/68/CEE
• Acoustic emission: 2005/88/CE – 2000/14/CE (sound guard version only)
Available Models: (230 V – 50Hz – 3Ph)
ETL1500 (15.00 kVA), ETL2590 (25.9 kVA), ETL3200 (32.0 kVA), ETL4700 (47.0 kVA)
Technical Data
| Label | Value |
|---|---|
|
Max power kVA |
ETL1500 (15.00 kVA), ETL2590 (25.9 kVA), ETL3200 (32.0 kVA), ETL3700 (37.0 kVA), ETL4700 (32.0 kVA) |
|
Phase |
Three phase |
|
Voltage |
400/230V+N |
|
Frequency |
50 Hz |
|
Engine cooling system |
Heat exchanger |
|
Noise level db(A) @7m |
54 |
|
Rpm |
1500 |
|
No. of cylinders |
4 |
Available Models
ETL series – features
ETL1500 | ETL2590 | ETL3200 | ETL3700 | ETL4700 | |
|---|---|---|---|---|---|
SKU | 25426C | 24713A | 24714C | 25427E | 25428G |
Max power kVA | 15.0 (12.0) | 25.9 (20.6) | 32.0 (25.6) | 37.0 (29.6) | 47.0 (37.6) |
Phase | Three phase | Three phase | Three phase | Three phase | Three phase |
Current (A) | 22.0 | 34.00 | 45.00 | 50.00 | 65.00 |
Voltage | 400/230V+N | 400/230V+N | 400/230V+N | 400/230V+N | 400/230V+N |
Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
Engine cooling system | Heat exchanger | Heat exchanger | Heat exchanger | Heat exchanger | Heat exchanger |
Noise level db(A) @7m | 54 | 54 | 54 | 54 | 54 |
Engine Model | KUBOTA D1703-BG | KUBOTA V2403-BG | KUBOTA V3300-BG | KUBOTA V3800-BG | KUBOTA V3800-BG |
No. of cylinders | 3 | 4 | 4 | 4 | 4 |
Dimensions soundproof version mm (“) | 1020x600x730 (40.1×23.6×28.7) | 1130x600x730 (44.5×23.6×28.7) | 1590x700x900 (62.6×27.6×35.4) | 1600x710x960 (63×27.9×37.8) | 1600x710x960 (63×27.9×37.8) |
Weight soundproof kg (lbs) | 372 (820.1) | 448 (987.7) | 670 (1477.1) | 700 (1543.2) | 700 (1543.2) |
Order Details
ETL series – features
| Model | Part Number | Description |
|---|---|---|
|
ETL1500 | 25426C |
Three phase Eneon Generator – Max power 15.0 kVA |
|
ETL2590 | 24713A |
Three phase Eneon Generator – Max power 25.9 kVA |
|
ETL3200 | 24714C |
Three phase Eneon Generator – Max power 32.0 kVA |
|
ETL4700 | 25428G |
Three phase Eneon Generator – Max power 47.0 kVA |
|
| ETL series – Eneon generators accessories |
|
|
Sea water kit | 22633B |
Sea water kit for ETL1500, ETL2590 generators |
|
Sea water kit | 22664D |
Sea water kit for ETL3200, ETL4700 generators |
|
Exhaust kit | 22666H |
Exhaust kit for ETL1500, ETL2590 generators |
|
Exhaust kit | 22667K |
Exhaust kit for ETL3200, ETL4700 generators |
|
Separator | 22669P |
Water/gas separator for ETL1500, ETL2590 generators |
|
Separator | 22670Y |
Water/gas separator for ETL3200, ETL4700 generators |
|
Syphon breaker | 22657G |
Syphon breaker for ETL series generators |
