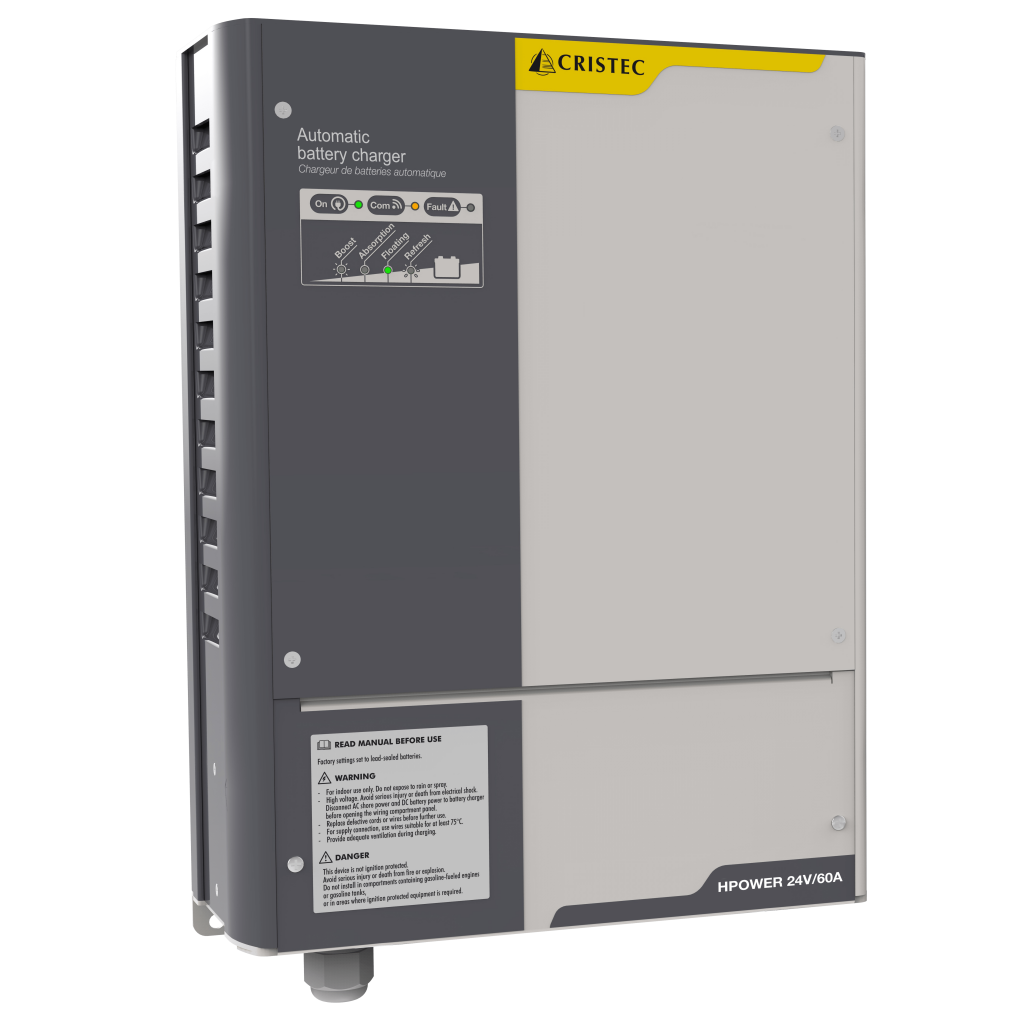

HPOWER AC-DC battery chargers

Description

HPOWER range – Innovative battery chargers

12V/90A / 24V/45A, 24V/60A, 24V/80A & 24V/100A / 48V 30A & 48V 50A

3-phase 400V input : 24V/60A, 24V/100A & 48V/50A

Specialized in the design and manufacturing of automatic battery chargers for more than 30 years, CRISTEC is extending its range of high quality battery chargers for the toughest conditions for professional and recreational purposes : HPOWER.

This new generation of battery chargers replaces very popular CPS3 range.

With CRISTEC HPOWER battery chargers you are assured of unrivalled efficiency, ruggedness, flexibility and battery life increase. Fully AC universal equipped and suitable for every type of battery including Li-Ion, they operate at full power up to 50°C without derating.
Internal circuit boards have been specially designed and coated to withstand to adverse environment : heat, humidity and salt air.

Options available :

• Temperature probe
• Remote touch-screen control panel
• Parallelization kit

HPOWER battery chargers are also compatible with a DC 144V (121V–169V) or a DC 288V (247V–346V) input network – see datasheet

Some approved models are also available : HPO-CERT

Availability :

3-phase 400V input : 24V/60A, 24V/100A & 48V/50A : 2025

HPO 48V 50A : End of 2024

BV Certification

Performances

• 5-stage charging profile to ensure fast and complete charging, power-supply mode available
• Full power up to +50°C ambient with no derating allowing rated charge for intensive use in hot or confined place
• 3 isolated battery banks, with no current limitation
• Suitable for all battery types : flooded, Lead-sealed, Calcium-Lead, AGM, gel, Lithium, etc.
• Increased battery life

Worldwide use

• 90-265VAC/47-65Hz auto-ranging (some models have 400V 3-phase input : 24V 60A, 24V 100A & 48V 50A)
• Rated operation regardless the available AC voltage including from a genset
• Memory function : in case of unstable AC network the charger will not reset to prevent battery overcharging
• Best in class protection : removable fuses and varistor, coated circuit board for marine environment, automatic burn-in test

Ergonomics

• Lightweight rugged Aluminium casing with special coating for marine environment
• Optimal accessibility : specific secured connection compartment
• Readability comfort Dedicated LEDs and icons on the front

Applications

HPOWER AC-DC battery chargers adapt to different markets and applications:

• Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
• Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
• Mobile :
  • Emergency vehicles : firemen, ambulance, rescue, depollution, etc.
  • Recreational vehicles : motorhome, golf course, etc.
  • Special vehicles : surveillance, transport of animals, Van, public works etc.
• Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
• Wind-powered : landsites
• Solar : isolated sites
