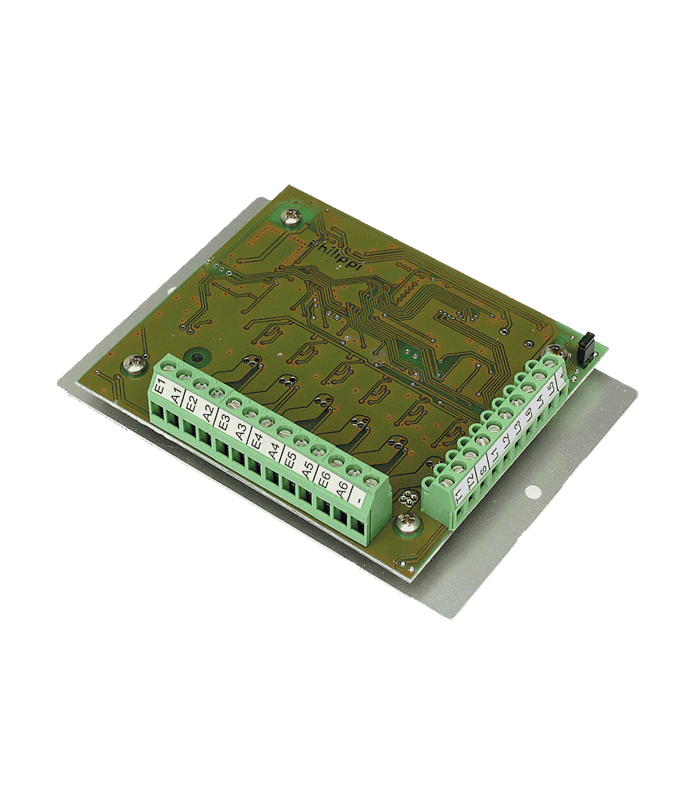

Philippi 80006060 – Position Lamp Monitoring Module (POS 6)

Description

Philippi 80006060 is a position lamp monitoring module that can handle up to six lanterns. It is designed to be retrofitted with 'old' POS 60 monitoring modules by ordering the built-in version POS 6E. With a nominal voltage range of DC 10-30V, it offers 6 monitoring channels with alarms. Each output has a current carrying capacity of 3A, and it supports lantern power of 0.2-36W/12V or 0.5-72W/24V. The module has a response current of 5mA, a voltage drop of maximum 0.1V (at 3A), and an internal power consumption of 2mA. Its compact dimensions are W 88mm x H 126mm x D 27mm.
