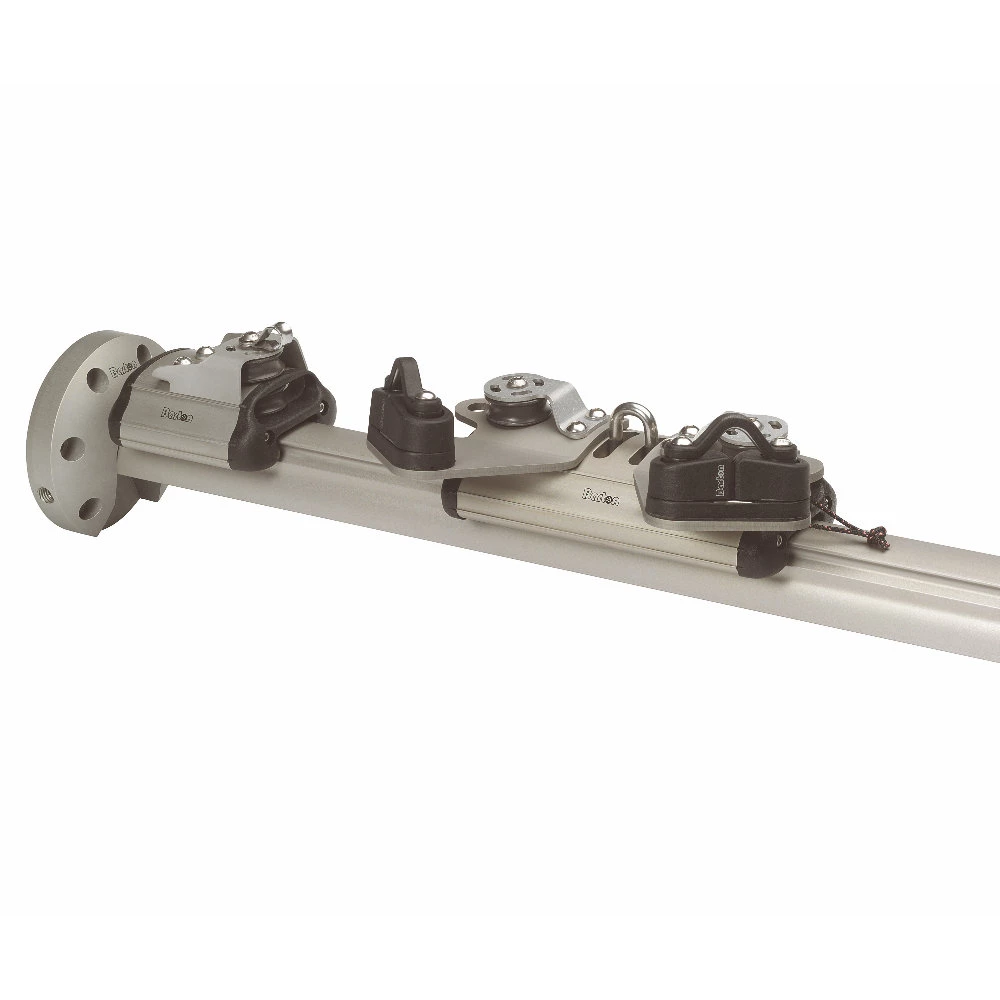

Removable Mainsheet Track System Size 2, 1.0m 26mm Beam Track

Description

Barton Marine’s removable track system is simple to install. End plates are bolted on both sides of the cockpit. Slide the track under these plates and then lift vertically, which automatically locks in position. To remove the mainsheet track, simply push in the locking pins on each side, lower the track and slide it out.

Complete removable mainsheet track system kits
Part no 20910 Suitable for yachts up to 8.5m (28.5ft)

• Size 1 beam track 1m length
• 1 pr removable mainsheet track plates
• 4:1 traveller system with cleats on the traveller

Part no 24910 Suitable for yachts up to 11m (36ft)

• Size 2 beam track 1m length
• 1 pr removable mainsheet track plates
• 4:1 traveller system with cleats on the traveller

Track Ending Plates are 100mm (3 15/16”) in diameter and use 5mm Socket
head fasteners (not supplied).

The maximum unsupported span of the beam track is
Size 1 = 400mm for yachts up to 8.5m (28ft)
Size 2 = 700mm for yachts up to 11.0m (36ft)
(Size 2 = 900mm for yachts up to 9.75m (32ft))
