Description
High maneuverability and station-keeping capability
Key Facts
- Usable as Tunnel Thruster and Azimuth Thruster

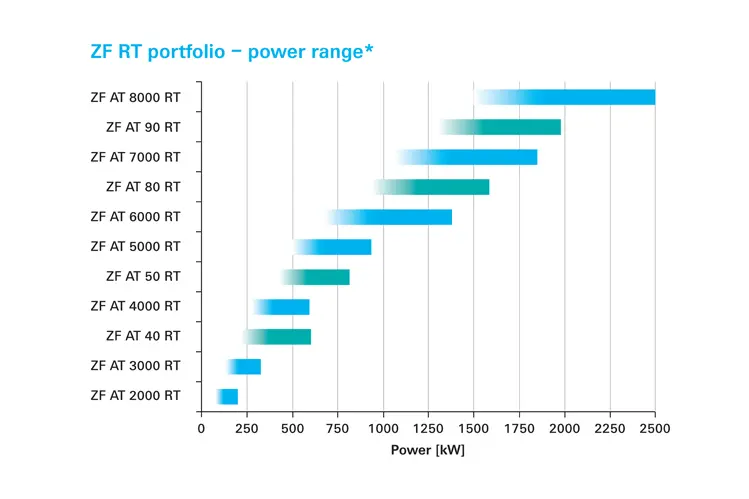

- From 100 to 2,500 kilowatts
- Suit for biodegradable lubrication oil
The Retractable Azimuth Thruster operates in full azimuth mode when deployed as part of an auxiliary propulsion system to increase the vessel’s station-keeping capabilities. A tunnel can be incorporated in the design of the outer well so that the thruster can be used as bow thruster as well. Typical applications for the propulsion system are OSV, research vessels, jack-up, stand-by and rescue vessels. The thruster is designed with a performance range 100-2,500 kW.
Options
All ZF Azimuth Thrusters are developed and produced in-house and thus, can be customized according to the customer’s wishes.L- or Z-driveControl system ThrusterCommand is integral part of the propulsion systemWell mounted from top in the vesselWell height can be chosen to best suit the vessel designTunnel Thruster modeOptionally use as a transverse thruster when fully retracted in the hullDrive optionsDiesel engine, using upper gearbox and wet or dry operated clutch (Z-drive)Electric motor, both horizontal (Z-drive) and vertical (L-drive)Hydraulic motor (L-drive) *Rating subject to classification and application. Mentioned data for indication purposeonly. Consult ZF technical staff to determine applicable power for each specific use.
