Description

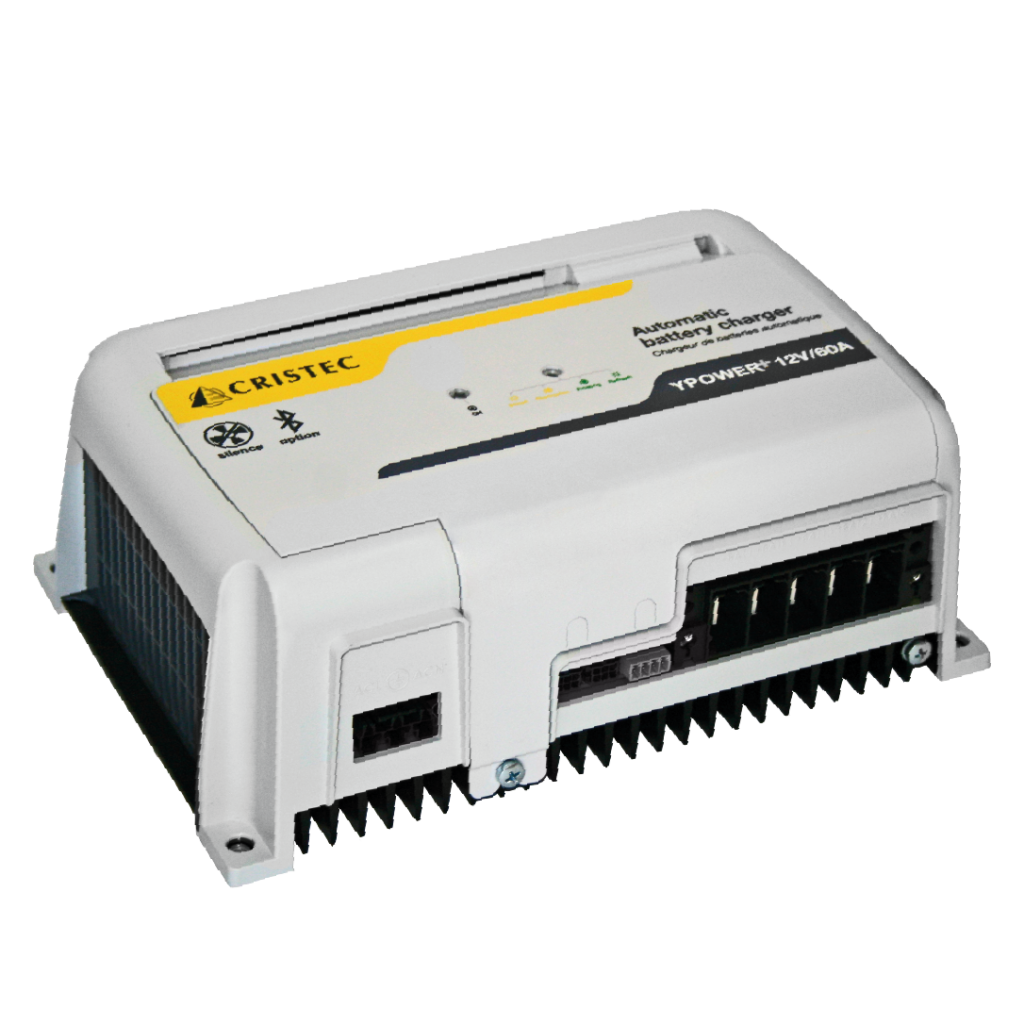

battery charger
Specialist in chargers for more than 30 years, CRISTEC is proud to offer you its brand new models.
They have all the advantages of the YPOWER range plus :
A completely silent operation (fanless)
3 or 4 independent outputs depending of models
Low energy bluetooth
A CAN-BUS interface
A compact casing and plug & play
A rated charge without loss up to + 60 °C
SILENT OPERATING
CRISTEC is the only manufacturer offering chargers up to 12V 70A with natural convection (without fan). This advantage gives the YPOWER+ chargers a completely silent operation and an optimized lifespan. It is therefore possible to install them anywhere on board, including under a berth.
3 or 4 independent outputs
The YPOWER+ chargers are the only chargers which have up to 4 independent and non-limited outputs.
Low energy bluetooth
The YPOWER+ chargers are equipped with a Wireless connection Low Energy (BLE), variant of “classic” Wireless connection. The major advantage of BLE is its low power consumption as it consumes half the power of a classic Wireless connection.
Remote control
The chargers are fitted with a CAN-Bus and a Wireless connection interface as standard.
Connection to an NMEA network is also available through an optional adaptor.
NMEA
COMPACT BOX
The
chargers are integrated in a compact box.
5-stage charging profile
Boost : charges batteries to 80% of full charge
Absorption : slowly completes remaining charge to 100%
Floating : maintains battery charge
Automatic refresh : prevents sulphation and revitalizes batteries, selectable by internal switch
Reboost : new automatic Boost phase if batteries demand needs it.
Power-supply mode also available.
IU mode by inhibiting the BOOST using internal switch.
Thermal Performance
- Rated charge up to +60°C with no derating
- can be installed in an engine room thanks to Ignition protection according to standards SAE J1171 and ISO8846
