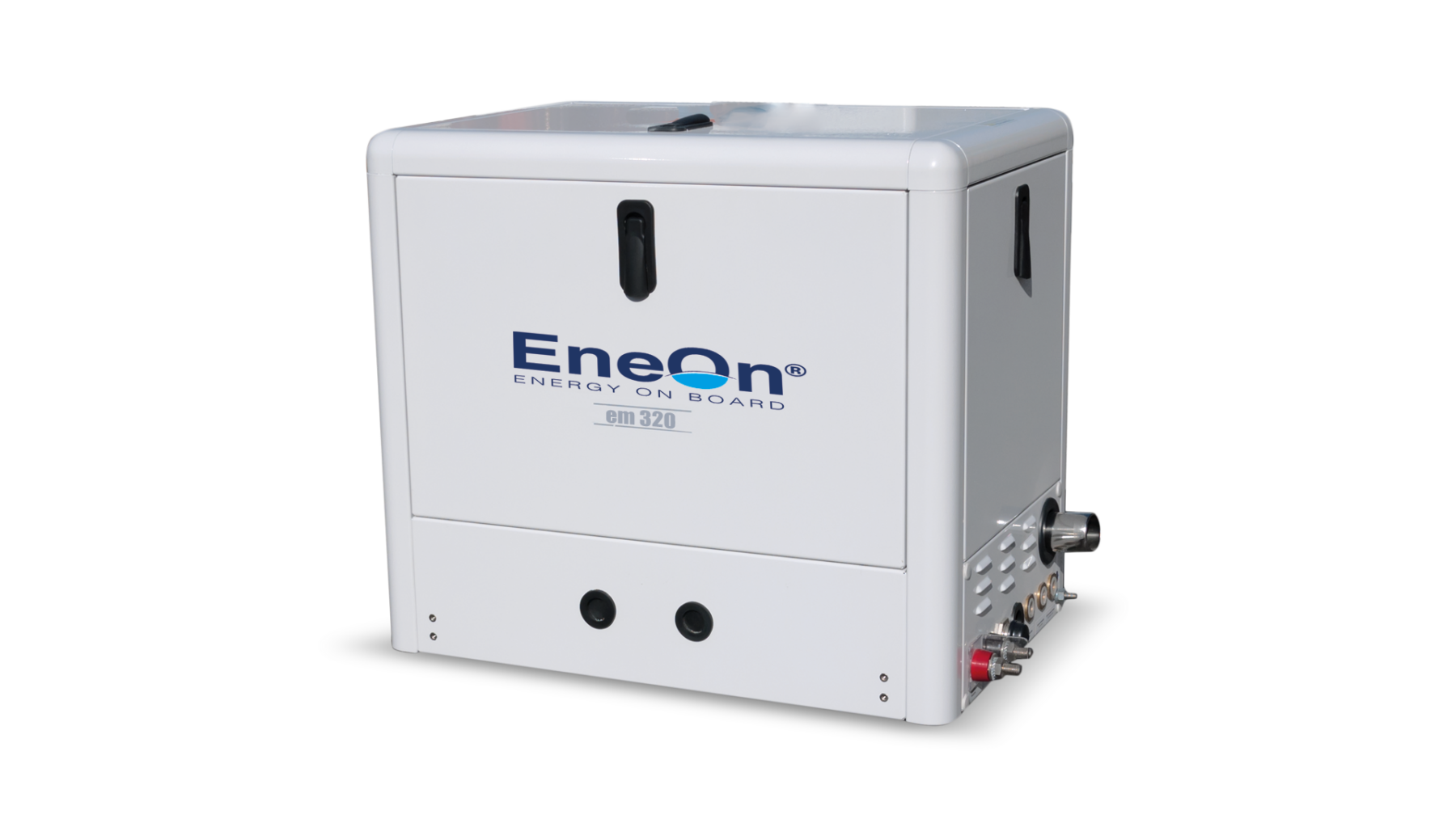

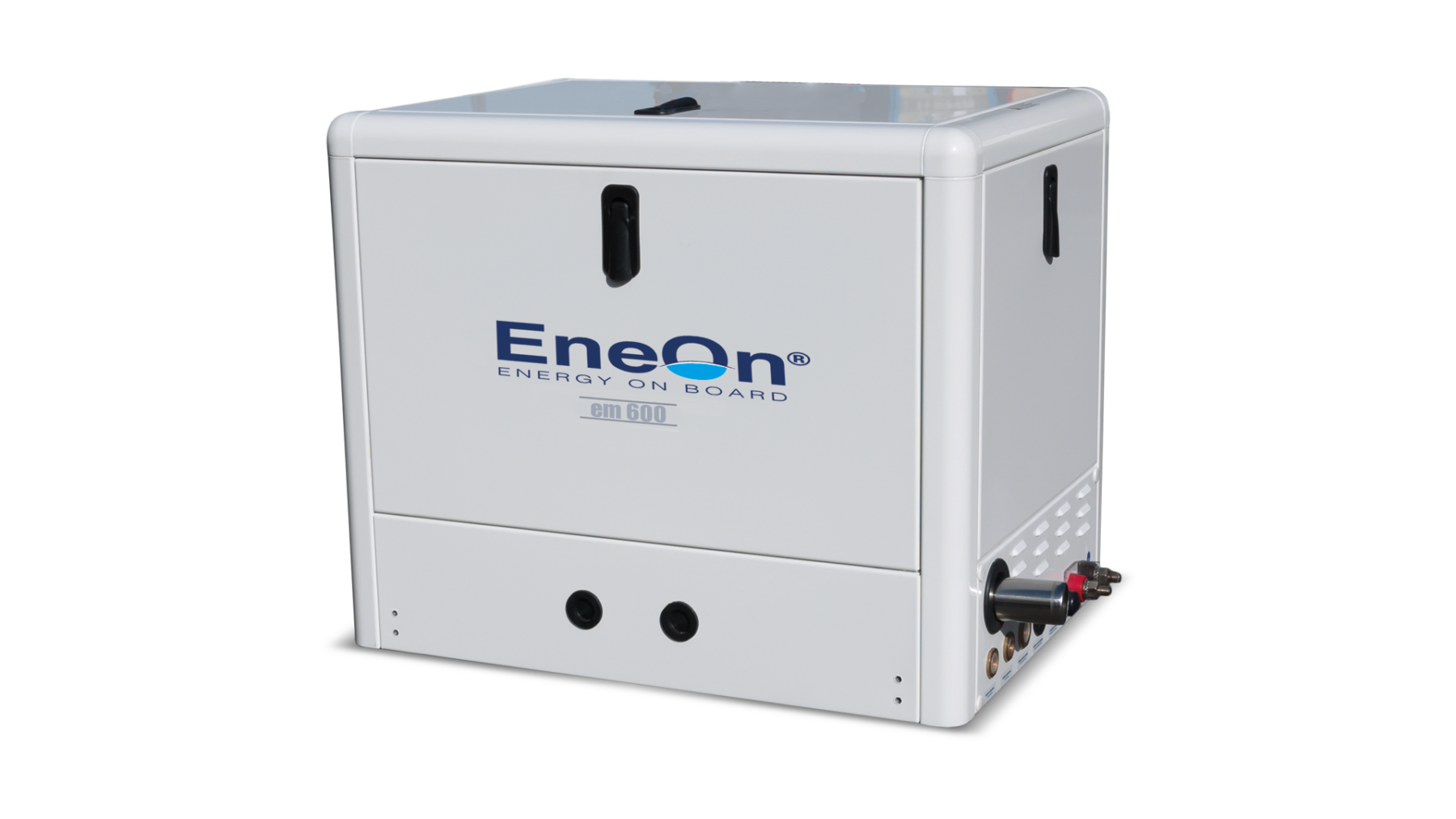

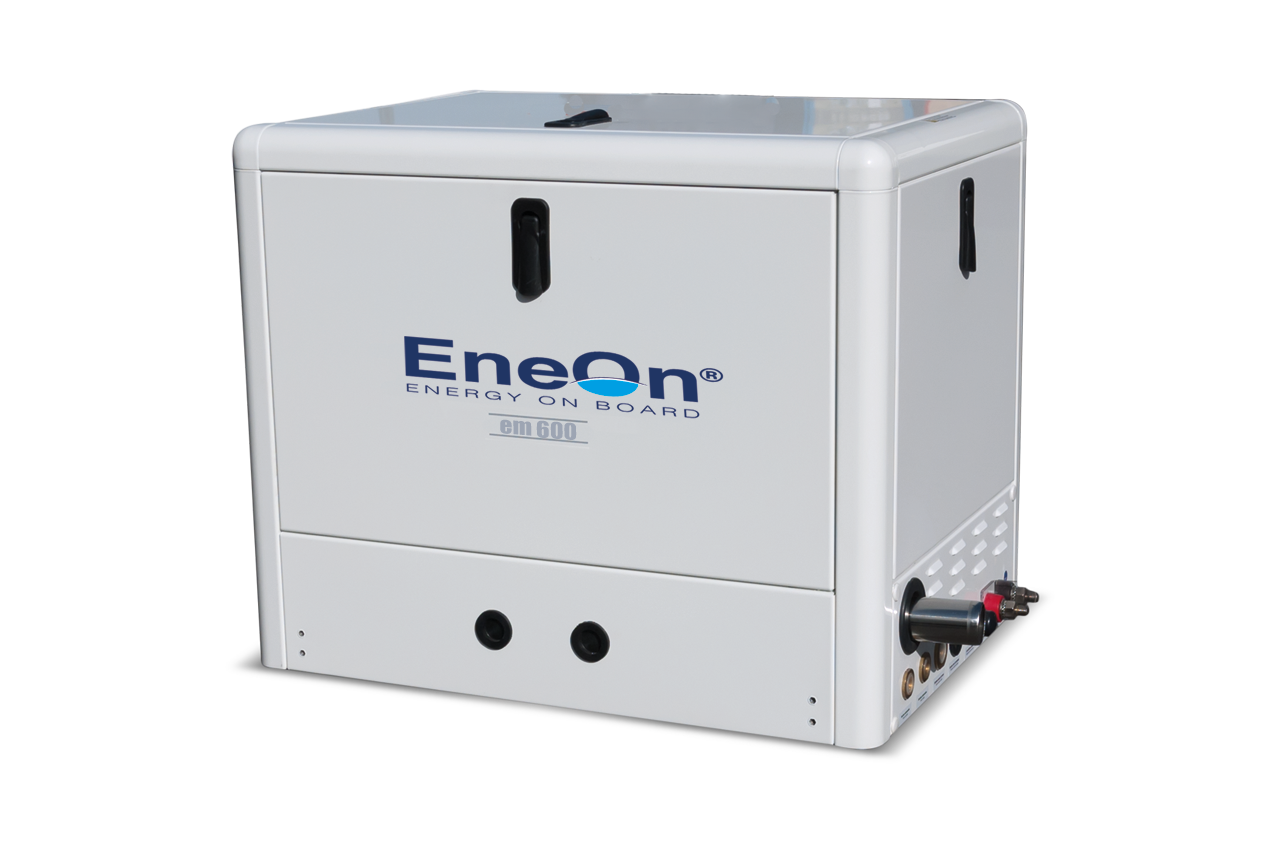

EM SERIES MARINE GENERATORS: 3000 RPM (3.2 to 9.0 Kw)
Marine generators Features
• Connection on one side
• Electronic management
• Easy maintenance
• Local and remote control
• Reduced dimensions and noise level
Marine generator’s standard equipment
• Sound proof canopy: Made entirely from marine grade aluminum (LEGA 5754 H111) powder coated.
• EOB® control panel: Waterproof control panel for engine protection with LCD display. Dimensions on the dashboard 96×96 mm, supplied separately for all the generators. Selector on board the generators for manual start bypassing the control panel.
• Generating set brackets: 4 steel brackets to attach the generator to the floor of the boat.
• Emergency button: Emergency button positioned on the Generating Set to allow for the immediate shutdown in case of danger or damage.
Marine generators optional equipment
• Silenced muffler kit
• Sea water intake kit
• Siphon breaker
• Water gas separator
• Electrical fuel pump
• Diesel prefilter with water separator
• Diesel water separator
• Manual oil extraction pump
Standards applied
• CE certified
• Power: ISO 8528
• Directive Machinery: 2006/42/CE – 89/392CEE – 98/37/CE
• Electromagnetic compatibility: 2004/108/CE – 89/336/CEE – 93/68/CEE
• Acoustic emission: 2005/88/CE – 2000/14/CE (sound guard version only)
Available Models: (230 V – 50Hz – 1Ph)
EM320 (3.2 Kw), EM600 (6.0 Kw), EM900 (9.0 Kw)
Technical Data
| Label | Value |
|---|---|
|
Max power kVA |
3.2 (EM320); 6.0 (EM600); 9.0 (EM900) |
|
Phase |
Single Phase |
|
Voltage |
230 V |
|
Frequency |
50 Hz |
|
Noise level db(A) @7m |
54 |
|
Rpm |
3000 |
Available Models
EM Series – features
Model | EM320 | EM600 | EM900 |
|---|---|---|---|
Max power kVA (kW) | 3.2 (3.2) | 6.0 (6.0) | 9.0 (9.0) |
Phase | Single phase | Single phase | Single phase |
Current (A) | 14.00 | 26.00 | 40.00 |
Voltage | 230V | 230V | 230V |
Frequency | 50 Hz | 50 Hz | 50 Hz |
Engine cooling system | Sea water/air | Heat exchanger | Heat exchanger |
Noise level db(A) @ 7 meters | 54 | 54 | 54 |
Engine model | YANMAR L70N | KUBOTA Z482 | KUBOTA D722 |
Rpm | 3000 | 3000 | 3000 |
No. of cylinders | 1 | 2 | 3 |
Dimensions soundproof versions mm (“) | 580x425x525 (22.8×16.7×20.7) | 650x480x540 (25.6×18.9×21.3) | 800x500x565 (31.5×19.7×22.2) |
Weight soundproof version kg (lbs) | 99 (218.3) | 152 (335.1) | 216 (476.2) |
Order Details
EM Series – features
| Model | Part Number | Description |
|---|---|---|
|
EM320 | 24705B |
Single phase Eneon Generator – Max power 3.2 kVA |
|
EM600 | 24706D |
Single phase Eneon Generator – Max power 6.0 kVA |
|
EM900 | 24707F |
Single phase Eneon Generator – Max power 9.0 kVA |
|
| EM series – Eneon generators accessories |
|
|
Sea water kit | 22662Z |
Sea water kit for EM320 generator |
|
Sea water kit | 22629B |
Sea water kit for EM600, EM900 generators |
|
Exhaust kit | 22630K |
Exhaust kit for EM series generators |
|
Separator | 22631M |
Water/gas separator for EM series generators |
|
Syphon breaker | 22657G |
Syphon breaker for EM series generators |
